AirLite®️ Aluminum Air Pipe System

Air Pipe You Can Trust

Easy & Fast

Fast & Easy to finish a connection; no special trainning required

Reliable

Durable material, solid sealing, strong connection; 15 Years warranty

Cost-Effective

Save your installation cost, labor cost, energy cost, and material cost.

Install a Compressed Air Pipe system never so easy!

PiPress AirLite aluminum air pipe, offers easy and fast installation, zero-leakage, low pressure drop, clean air source, and more…

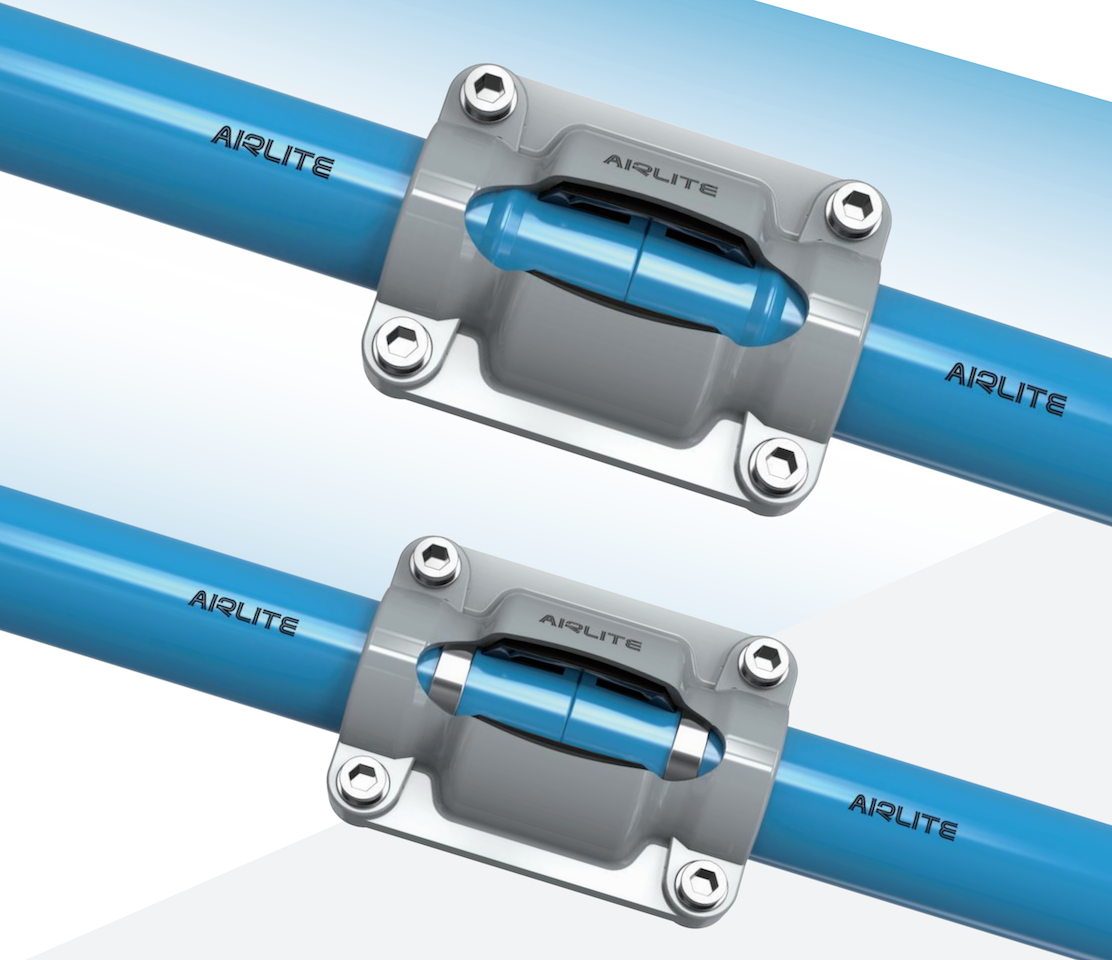

Push-in to Connect for DN20-DN50

Just to push the pipe into the connector, fasten screws to finish a connection.

Push-in and Connect

Grooved Connections extention for Larger Diameters

Make grooved lugs for DN63-DN300, for reliable connection of large diameters.

DN63-DN300 with grooved connection.

OEM/Private Label

As original manufacturer, we offer OEM and Private Label services for your own piping system.

Make Your Own Brands

Leak Free

Leak Free guarantee due to rust consitent rigid aluminum alloy materials and PiPress sealing technologies!

Save your air energy and cost

Clean Air Source

ISO8573-1 Quality compressed air source assured by AirLite aluminum piping system. Save your production line, save your products!

Compliance with ISO8573-1

Certificates

AirLite aluminum air pipe system was certified to meet CE/PED/2014/68/EU, ASME B31.1, B31.3 & B31.9, TUV, ISO standards.

Quality speaks

It’s not about services,
It’s about ‘YOU’!

PiPress offers flexible solutions for your compressed air piping systems.

Installation Videos

Installation of Pipes(DN20-50)
Installation of Pipes(DN63-200)
Installation of Quick Drop
portable lugging tool

9000+

satisfied clients and projects

660000+

Meters of piping system installed and running safely.

600+

Ongoing projects under design and review

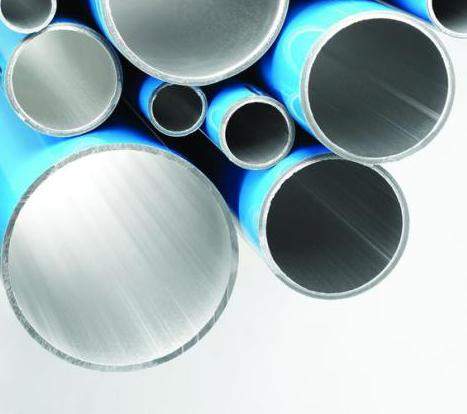

Aluminum Alloy Pipes(Blue, Gray, Green, Yellow Available, 6063-T5)

Aluminum Alloy Pipe, Blue, 5.8meters long, DN20, OD23*1.5mm DN20 92060 00 ALP200000
Aluminum Alloy Pipe, Blue, 5.8meters long, DN25, OD28.5*1.5mm DN25 92560 00 ALP250000
Aluminum Alloy Pipe, Blue, 5.8meters long, DN40, OD44*1.5mm DN40 94060 00 ALP400000
Aluminum Alloy Pipe, Blue, 5.8meters long, DN50, OD54*2mm DN50 95060 00 ALP500000
Aluminum Alloy Pipe, Blue, 5.8meters long, DN65, OD70*2.3mm, Grooved Ends DN65 96560 00 ALP650000
Aluminum Alloy Pipe, Blue, 5.8meters long, DN80, OD86*2.4mm, Grooved Ends DN80 98060 00 ALP800000
Aluminum Alloy Pipe, Blue, 5.8meters long, DN100, OD106*2.5mm, Grooved Ends DN100 91B60 00 ALP1B0000
Aluminum Alloy Pipe, Blue, 5.8meters long, DN125, OD130*2.6mm, Grooved Ends DN125 91E00 00 ALP1E0000
Aluminum Alloy Pipe, Blue, 5.8meters long, DN150, OD159*3.0mm, Grooved Ends DN150 91W60 00 ALP1W0000
Aluminum Alloy Pipe, Blue, 5.8meters long, DN200, OD220*3.5mm, Grooved Ends DN200 92B60 00 ALP2B0000

Pipe to Pipe Connector

Description Specs Part Number Special Code
Connector, Aluminum DN20 12000 00 ALS200000
Connector, Aluminum DN25 12500 00 ALS250000
Connector, Aluminum DN40 14000 00 ALS400000
Connector, Aluminum DN50 15000 00 ALS500000
Connector, Aluminum DN65 16500 00 ALS650000
Connector, Aluminum DN80 18000 00 ALS800000
Connector, Aluminum DN100 11B00 00 ALS1B0000
Connector, Aluminum DN125 11E00 00 ALS1E0000
Connector, Aluminum DN150 11W00 00 ALS1W0000
Connector, Aluminum DN200 12B00 00 ALS2B0000

90° Elbow

Description Specs Part Number Special Code
90°Elbow (Assembled with Connectors) DN20 22000 01 ALE200001
90°Elbow (Assembled with Connectors) DN25 22500 01 ALE250001
90°Elbow (Assembled with Connectors) DN40 24000 01 ALE400001
90°Elbow (Assembled with Connectors) DN50 25000 01 ALE500001
90°Elbow (With Connectors) DN65 26500 01 ALE650001
90°Elbow (With Connectors) DN80 28000 01 ALE800001
90°Elbow (With Connectors) DN100 21B00 01 ALE1B0001
91°Elbow (With Connectors) DN125 21E00 01 ALE1E0001
90°Elbow (With Connectors) DN150 21W00 01 ALE1W0001
90°Elbow (With Connectors) DN200 22B00 01 ALE2B0001

Equal Tee & Reducing Tee

Description Specs Part Number Special Code
Equal Tee（Assembled With Connectors） DN20 32000 01 ALT200001
Equal Tee（Assembled With Connectors） DN25 32500 01 ALT250001
Equal Tee（Assembled With Connectors） DN40 34000 01 ALT400001
Equal Tee（Assembled With Connectors） DN50 35000 01 ALT500001
Equal Tee (With Connectors) DN65 36500 01 ALT650001
Equal Tee (With Connectors) DN80 38000 01 ALT800001
Equal Tee (With Connectors) DN100 31B00 01 ALT1B0001
Equal Tee (With Connectors) DN125 31E00 01 ALT1E0001
Equal Tee (With Connectors) DN150 31W00 01 ALT1W0001
Equal Tee (With Connectors) DN200 32B00 01 ALT2B0001
Reducing Tee (Assembled With Connectors) DN25-DN20 32520 01 ALT252001
Reducing Tee (Assembled With Connectors) DN40-DN20 34020 01 ALT402001
Reducing Tee (Assembled With Connectors) DN40-DN25 34025 01 ALT402501
Reducing Tee (Assembled With Connectors) DN50-DN25 35025 01 ALT502501
Reducing Tee (Assembled With Connectors) DN50-DN40 35040 01 ALT504001
Reducing Tee (With Connectors) DN65-DN40 36540 01 ALT654001
Reducing Tee (With Connectors) DN65-DN50 36550 01 ALT655001
Reducing Tee (With Connectors) DN80-DN50 38050 01 ALT805001
Reducing Tee (With Connectors) DN80-DN65 38065 01 ALT806501
Reducing Tee (With Connectors) DN100-DN65 31B65 01 ALT1B6501
Reducing Tee (With Connectors) DN100-DN80 31B80 01 ALT1B8001
Reducing Tee (With Connectors) DN125-DN80 31E80 01 ALT1E8001
Reducing Tee (With Connectors) DN125-DN100 31E1B 01 ALT1E1B01
Reducing Tee (With Connectors) DN150-DN80 31W80 01 ALT1W8001
Reducing Tee (With Connectors) DN150-DN100 31W1B 01 ALT1W1B01
Reducing Tee (With Connectors) DN150-DN125 31W1E 01 ALT1W1E01
Reducing Tee (With Connectors) DN200-DN100 32B1B 01 ALT2B1B01
Reducing Tee (With Connectors) DN200-DN150 32B1W 01 ALT2B1W01

Reducing Connector

Description Specs Part Number Special Code
Reducing Connector (Assembled With Connectors) DN25-DN20 42520 01 ALR252001
Reducing Connector (Assembled With Connectors) DN40-DN20 44020 01 ALR402001
Reducing Connector (Assembled With Connectors) DN40-DN25 44025 01 ALR402501
Reducing Connector (Assembled With Connectors) DN50-DN25 45025 01 ALR502501
Reducing Connector (Assembled With Connectors) DN50-DN40 45040 01 ALR504001
Reducing Connector (Assembled With Connectors) DN65-DN40 46540 01 ALR654001
Reducing Connector (Assembled With Connectors) DN65-DN50 46550 01 ALR655001
Reducing Connector (Assembled With Connectors) DN80-DN50 48050 01 ALR805001
Reducing Connector (With Connectors) DN80-DN65 48065 01 ALR806501
Reducing Connector (With Connectors) DN100-DN65 41B65 01 ALR1B6501
Reducing Connector (With Connectors) DN100-DN80 41B80 01 ALR1B8001
Reducing Connector (With Connectors) DN125-DN80 41E80 01 ALR1E8001
Reducing Connector (With Connectors) DN125-DN100 41E1B 01 ALR1E1B01
Reducing Connector (With Connectors) DN150-DN100 41W1B 01 ALR1W1B01
Reducing Connector (With Connectors) DN150-DN125 41W1E 01 ALR1W1E01
Reducing Connector (With Connectors) DN200-DN100 42B1B 01 ALR2B1B01
Reducing Connector (With Connectors) DN200-DN150 42B1W 01 ALR2B1W01

Thread Adapter-BSP

Description Specs Part Number Special Code
Female Threaded Adapter (Assembled With Connectors), BSP DN20-¾” 52020N 01 ALA2020F1
Female Threaded Adapter (Assembled With Connectors), BSP DN20-½” 52015N 01 ALA2015F1
Male Threaded Adapter (Assembled With Connectors), BSP DN20-½” 52015W 01 ALA2015M1
Male Threaded Adapter (Assembled With Connectors), BSP DN20-¾” 52020W 01 ALA2020M1
Female Threaded Adapter (Assembled With Connectors), BSP DN25-½” 52515N 01 ALA2515F1
Female Threaded Adapter (Assembled With Connectors), BSP DN25-¾” 52520N 01 ALA2520F1
Female Threaded Adapter (Assembled With Connectors), BSP DN25-1″ 52525N 01 ALA2525F1
Male Threaded Adapter (Assembled With Connectors), BSP DN25-½” 52515W 01 ALA2515M1
Male Threaded Adapter (Assembled With Connectors), BSP DN25-¾” 52520W 01 ALA2520M1
Male Threaded Adapter (Assembled With Connectors), BSP DN25-1″ 52525W 01 ALA2525M1
Female Threaded Adapter (Assembled With Connectors), BSP DN40-1 ½” 54040N 01 ALA4040F1
Male Threaded Adapter (Assembled With Connectors), BSP DN40-1 ½” 54040W 01 ALA4040M1
Female Threaded Adapter (Assembled With Connectors), BSP DN40-1 1/4″ 54032N 01 ALA4032F1
Male Threaded Adapter (Assembled With Connectors), BSP DN40-1 1/4″ 54032W 01 ALA4032M1
Female Threaded Adapter (Assembled With Connectors), BSP DN50-2″ 55050N 01 ALA5050F1
Male Threaded Adapter (Assembled With Connectors), BSP DN50-2″ 55050W 01 ALA5050M1
Female Threaded Adapter (With Connectors), BSP DN65-2 ½” 56565N 01 ALA6565F1
Male Threaded Adapter (With Connectors), BSP DN65-2 ½” 56565W 01 ALA6565M1
Female Threaded Adapter (With Connectors), BSP DN80-3″ 58080N 01 ALA8080F1
Male Threaded Adapter (With Connectors), BSP DN80-3″ 58080W 01 ALA8080M1

Thread Adapter-NPT

Description Specs Part Number Special Code
Female Threaded Adapter (Assembled With Connectors), NPT DN20-¾” 52020N-M 01
Female Threaded Adapter (Assembled With Connectors), NPT DN20-½” 52015N-M 01
Male Threaded Adapter (Assembled With Connectors), NPT DN20-½” 52015W-M 01
Male Threaded Adapter (Assembled With Connectors), NPT DN20-¾” 52020W-M 01
Female Threaded Adapter (Assembled With Connectors), NPT DN25-½” 52515N-M 01
Female Threaded Adapter (Assembled With Connectors), NPT DN25-¾” 52520N-M 01
Female Threaded Adapter (Assembled With Connectors), NPT DN25-1″ 52525N-M 01
Male Threaded Adapter (Assembled With Connectors), NPT DN25-½” 52515W-M 01
Male Threaded Adapter (Assembled With Connectors), NPT DN25-¾” 52520W-M 01
Male Threaded Adapter (Assembled With Connectors), NPT DN25-1″ 52525W-M 01
Female Threaded Adapter (Assembled With Connectors), NPT DN40-1 ½” 54040N-M 01
Male Threaded Adapter (Assembled With Connectors), NPT DN40-1 ½” 54040W-M 01
Female Threaded Adapter (Assembled With Connectors), NPT DN40-1 1/4″ 54032N-M 01
Male Threaded Adapter (Assembled With Connectors), NPT DN40-1 1/4″ 54032W-M 01
Female Threaded Adapter (Assembled With Connectors), NPT DN50-2″ 55050N-M 01
Male Threaded Adapter (Assembled With Connectors), NPT DN50-2″ 55050W-M 01
Female Threaded Adapter (With Connectors), NPT DN65-2 ½” 56565N-M 01
Male Threaded Adapter (With Connectors), NPT DN65-2 ½” 56565W-M 01
Female Threaded Adapter (With Connectors), NPT DN80-3″ 58080N-M 01
Male Threaded Adapter (With Connectors), NPT DN80-3″ 58080W-M 01
Quick Drop, 90°
Quick Drop-Direct (to DN 40 & DN50)

Quick Drop

Description Specs Part Number Special Code
Quick Drop (Assembled With Connectors), 90° DN40-DN20 64020 01 ALQ402001
Quick Drop (Assembled With Connectors), 90° DN40-DN25 64025 01 ALQ402501
Quick Drop (Assembled With Connectors), 90° DN50-DN20 65020 01 ALQ502001
Quick Drop (Assembled With Connectors), 90° DN50-DN25 65025 01 ALQ502501
Quick Drop (Assembled With Connectors), 90° DN65-DN20 66520 01 ALQ652001
Quick Drop (Assembled With Connectors), 90° DN65-DN25 66525 01 ALQ652501
Quick Drop (Assembled With Connectors), 90° DN80-DN20 68020 01 ALQ802001
Quick Drop (Assembled With Connectors), 90° DN80-DN25 68025 01 ALQ802501
Quick Drop (Assembled With Connectors), Direct DN80-DN40 68040 01 ALQ804001
Quick Drop (Assembled With Connectors), 90° DN100-DN20 61B20 01 ALQ1B2001
Quick Drop (Assembled With Connectors), 90° DN100-DN25 61B25 01 ALQ1B2501
Quick Drop (Assembled With Connectors), Direct DN100-DN40 61B40 01 ALQ1B4001
Quick Drop (Assembled With Connectors), Direct DN100-DN50 61B50 01 ALQ1B5001
Quick Drop (Assembled With Connectors), 90° DN125-DN20 61E20 01 ALQ1E2001
Quick Drop (Assembled With Connectors), 90° DN125-DN25 61E25 01 ALQ1E2501
Quick Drop (Assembled With Connectors), Direct DN125-DN40 61E40 01 ALQ1E4001
Quick Drop (Assembled With Connectors), Direct DN125-DN50 61E50 01 ALQ1E5001
Quick Drop (Assembled With Connectors), 90° DN150-DN20 61W20 01 ALQ1W2001
Quick Drop (Assembled With Connectors), 90° DN150-DN25 61W25 01 ALQ1W2501
Quick Drop (Assembled With Connectors), Direct DN150-DN40 61W40 01 ALQ1W4001
Quick Drop (Assembled With Connectors), Direct DN150-DN50 61W50 01 ALQ1W5001
Quick Drop (Assembled With Connectors), 90° DN200-DN20 62B20 01 ALQ2B2001
Quick Drop (Assembled With Connectors), 90° DN200-DN25 62B25 01 ALQ2B2501
Quick Drop (Assembled With Connectors), Direct DN200-DN40 62B40 01 ALQ2B4001
Quick Drop (Assembled With Connectors), Direct DN200-DN50 62B50 01 ALQ2B5001

Quick Drop-Female-BSP & NPT

Description Specs Part Number Special Code
Quick Drop, Female, BSP, Direct DN40-½” 64015N 00 ALQ4015F1
Quick Drop, Female, BSP, Direct DN40-¾” 64020N 00 ALQ4020F1
Quick Drop, Female, BSP, Direct DN50-½” 65015N 00 ALQ5015F1
Quick Drop, Female, BSP, Direct DN50-¾” 65020N 00 ALQ5020F1
Quick Drop, Female, BSP, Direct DN65-½” 66515N 00 ALQ6515F1
Quick Drop, Female, BSP, Direct DN65-¾” 66520N 00 ALQ6520F1
Quick Drop, Female, BSP, Direct DN80-½” 68015N 00 ALQ8015F1
Quick Drop, Female, BSP, Direct DN80-¾” 68020N 00 ALQ8020F1
Quick Drop, Female, BSP, Direct DN100-½” 61B15N 00 ALQ1B15F1
Quick Drop, Female, BSP, Direct DN100-¾” 61B20N 00 ALQ1B20F1
Quick Drop, Female, BSP, Direct DN125-½” 61E15N 00 ALQ1E15F1
Quick Drop, Female, BSP, Direct DN125-¾” 61E20N 00 ALQ1E20F1
Quick Drop, Female, BSP, Direct DN150-½” 61W15N 00 ALQ1W15F1
Quick Drop, Female, BSP, Direct DN150-¾” 61W20N 00 ALQ1W20F1
Quick Drop, Female, BSP, Direct, Stainless Steel DN150-1″ 61W25N 00 ALQ1W25F1
Quick Drop, Female, BSP, Direct DN200-½” 61W15N 00 ALQ2B15F1
Quick Drop, Female, BSP, Direct DN200-¾” 61W20N 00 ALQ2B20F1
Quick Drop, Female, BSP, Direct, Stainless Steel DN200-1″ 61W25N 00 ALQ2B25F1

Aluminum Flange-ISO & ANSI

Description Specs Part Number Special Code
Equal Flange (With Connectors） DN65 76500 01 ALL650001
Equal Flange (With Connectors） DN80 78000 01 ALL800001
Equal Flange (With Connectors） DN100 71B00 01 ALL1B0001
Equal Flange (With Connectors） DN125 71E0 01 ALL1E0001
Equal Flange (With Connectors） DN150 71W00 01 ALL1W0001
Equal Flange (With Connectors） DN200 72B00 01 ALL2B0001

End Cap

Description Specs Part Number Special Code
End Cap（Assembled With Connectors） DN20 82000 01 ALC200001
End Cap（Assembled With Connectors） DN25 82500 01 ALC250001
End Cap（Assembled With Connectors） DN40 84000 01 ALC400001
End Cap（Assembled With Connectors） DN50 85000 01 ALC500001
End Cap（With Connectors） DN65 86500 01 ALC650001
End Cap（With Connectors） DN80 88000 01 ALC800001
End Cap（With Connectors） DN100 81B00 01 ALC1B0001
End Cap（With Connectors） DN125 81E00 01 ALC1E0001
End Cap（With Connectors） DN150 81W00 01 ALC1W0001
End Cap（With Connectors） DN200 82B00 01 ALC2B0001

Aluminum Ball Valve

Description Specs Part Number Special Code
Aluminum Ball Valve（Assembled With Connectors） DN20 A2020 31 ALV202001
Female Threaded Ball Valve (Assembled With Connectors), BSP DN20-1/2″ A2015N 31 ALV2015F1
Female Threaded Ball Valve (Assembled With Connectors), BSP DN20-3/4″ A2020N 31 ALV2020F1
Male Threaded Ball Valve (Assembled With Connectors), BSP DN20-3/4″ A2020W 31 ALV2020M1
Aluminum Ball Valve（Assembled With Connectors） DN25 A2525 31 ALV252501
Female Threaded Ball Valve (Assembled With Connectors), BSP DN25-1/2″ A2515N 31 ALV2515F1
Female Threaded Ball Valve (Assembled With Connectors), BSP DN25-3/4″ A2520N 31 ALV2520F1
Female Threaded Ball Valve (Assembled With Connectors), BSP DN25-1″ A2525N 31 ALV2525F1
Male Threaded Ball Valve (Assembled With Connectors), BSP DN25-1″ A2525W 31 ALV2525M1
Aluminum Ball Valve（Assembled With Connectors） DN40 A4040 31 ALV404001
Female Threaded Ball Valve (Assembled With Connectors), BSP DN40-1 ½” A4040N 31 ALV4040F1
Male Threaded Ball Valve (Assembled With Connectors), BSP DN40-1 ½” A4040W 31 ALV4040M1
Aluminum Ball ValveValve（Assembled With Connectors） DN50 A5050 31 ALV505001
Female Threaded Ball Valve (Assembled With Connectors), BSP DN50-2″ A5050N 31 ALV5050F1
Male Threaded Ball Valve (Assembled With Connectors), BSP DN50-2″ A5050W 31 ALV5050M1

Butterfly Valve

Description Specs Part Number Special Code
Handle Butterfly Valve (With Connectors), Steel Body, SS Disc DN65 A65SD 41 ALV65SD01
Turbine Butterfly Valve (With Connectors), Steel Body, SS Disc DN80 A80WD 41 ALV80WD01
Turbine Butterfly Valve (With Connectors), Steel Body, SS Disc DN100 A1BWD 41 ALV1BWD01
Turbine Butterfly Valve (With Connectors), Steel Body, SS Disc DN125 A1EWD 41 ALV1EWD01
Turbine Butterfly Valve (With Connectors), Steel Body, SS Disc DN150 A1WWD 41 ALV1WWD01
Turbine Butterfly Valve (With Connectors), Steel Body, SS Disc DN200 A2BWD 41 ALV2BWD01
Handle Butterfly Valve (With Connectors), Stainless Steel Body & Disc DN65 A65SD 31 ALV65SD31
Turbine Butterfly Valve (With Connectors), Stainless Steel Body & Disc DN80 A80WD 31 ALV80WD31
Turbine Butterfly Valve (With Connectors), Stainless Steel Body & Disc DN100 A1BWD 31 ALV1BWD31
Turbine Butterfly Valve (With Connectors), Stainless Steel Body & Disc DN150 A1WWD 31 ALV1WWD31
Turbine Butterfly Valve (With Connectors), Stainless Steel Body & Disc DN200 A2BWD 31 ALV2BWD31

Speak To Our Experts. Call tel:+1-678-6611988or Submit a Request

We were shocked by PiPress fast-installation piping joinning and fittings, which help us to renovate our piping system within 3days by our own staff. And it prooves to be safe and no leakage.

John Deo – CEO ABCWorks

5.0

Trusted by Thousands of Customers

Leave a review
