Stainless Steel Grooved System

Grooved Coupling

Join mating grooved ends with a mechanical coupling. Select the exact size designation and material grade, then confirm the groove geometry and gasket for the operating conditions.

Material options
AISI 316L / AISI 304
Connection
Mechanical grooved connection
Size configurations
10 listed combinations
Selection
Grooved pipe joining
Select a size ↓Request a quote

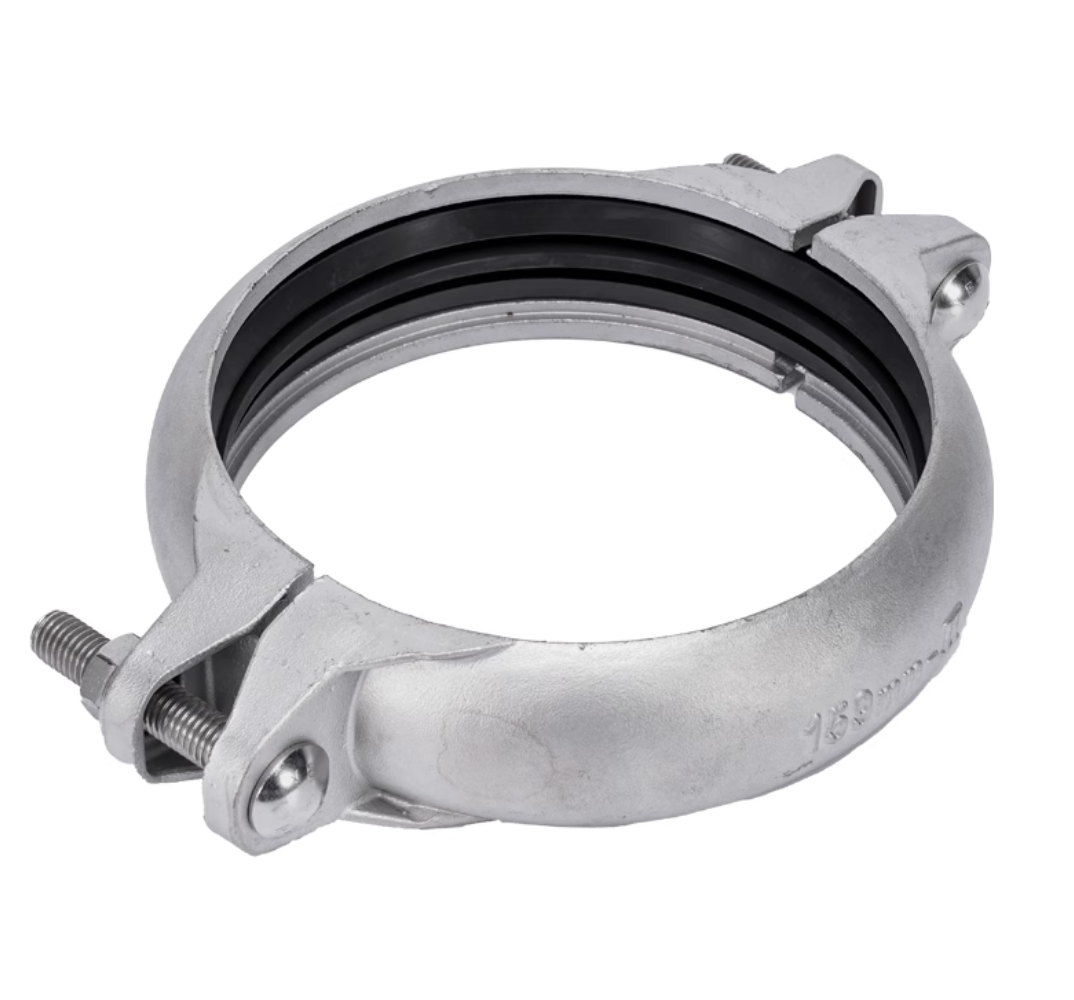

PiPress Grooved CouplingProduct appearance varies by size.

Product configurations

Find your size and SKU.

Search by item code or size, select the material, and add the configuration to your enquiry.

20 SKUs

Grooved Coupling — 20 listed SKUs
Product SKUSize designationMaterialTechnical detailsEnquiry
G-S76000G-316L76.1AISI 316L
EN 1.4404
Configuration details

PiPress Grooved Coupling Connector, EN1.4404/AISI316L, 76.1

G-S89000G-316L88.9AISI 316L
EN 1.4404
Configuration details

PiPress Grooved Coupling Connector, EN1.4404/AISI316L, 88.9

G-S10800G-316L108AISI 316L
EN 1.4404
Configuration details

PiPress Grooved Coupling Connector, EN1.4404/AISI316L, 108

G-S1E0000-316LDN125AISI 316L
EN 1.4404
Configuration details

PiPress Grooved Coupling Connector, EN1.4404/AISI316L, DN125

G-S1W0000-316LDN150AISI 316L
EN 1.4404
Configuration details

PiPress Grooved Coupling Connector, EN1.4404/AISI316L, DN150

G-S2B0000-316LDN200(219mm)AISI 316L
EN 1.4404
Configuration details

PiPress Grooved Coupling Connector, EN1.4404/AISI316L, DN200

G-S2W0000-316LDN250(273mm)AISI 316L
EN 1.4404
Configuration details

PiPress Grooved Coupling Connector, EN1.4404/AISI316L, DN250

G-S3B0000-316LDN300(325mm)AISI 316L
EN 1.4404
Configuration details

PiPress Grooved Coupling Connector, EN1.4404/AISI316L, DN300

G-S3W0000-316LDN350AISI 316L
EN 1.4404
Configuration details

PiPress Grooved Coupling Connector, EN1.4404/AISI316L, DN350

G-S4B0000-316LDN400AISI 316L
EN 1.4404
Configuration details

PiPress Grooved Coupling Connector, EN1.4404/AISI316L, DN400

G-S76000G-30476.1AISI 304
EN 1.4301
Configuration details

PiPress Grooved Coupling Connector, EN1.4301/AISI304, 76.1

G-S89000G-30488.9AISI 304
EN 1.4301
Configuration details

PiPress Grooved Coupling Connector, EN1.4301/AISI304, 88.9

G-S10800G-304108AISI 304
EN 1.4301
Configuration details

PiPress Grooved Coupling Connector, EN1.4301/AISI304, 108

G-S1E0000-304DN125AISI 304
EN 1.4301
Configuration details

PiPress Grooved Coupling Connector, EN1.4301/AISI304, DN125

G-S1W0000-304DN150AISI 304
EN 1.4301
Configuration details

PiPress Grooved Coupling Connector, EN1.4301/AISI304, DN150

G-S2B0000-304DN200(219mm)AISI 304
EN 1.4301
Configuration details

PiPress Grooved Coupling Connector, EN1.4301/AISI304, DN200

G-S2W0000-304DN250(273mm)AISI 304
EN 1.4301
Configuration details

PiPress Grooved Coupling Connector, EN1.4301/AISI304, DN250

G-S3B0000-304DN300(325mm)AISI 304
EN 1.4301
Configuration details

PiPress Grooved Coupling Connector, EN1.4301/AISI304, DN300

G-S3W0000-304DN350AISI 304
EN 1.4301
Configuration details

PiPress Grooved Coupling Connector, EN1.4301/AISI304, DN350

G-S4B0000-304DN400AISI 304
EN 1.4301
Configuration details

PiPress Grooved Coupling Connector, EN1.4301/AISI304, DN400

Size designations are shown as listed in the product catalogue. Confirm outside diameter, wall thickness and mating connection dimensions when ordering.

Selection & documentation

Specify the complete connection.

  • Confirm the exact item code, size and material grade.
  • Provide the fluid, operating pressure and temperature.
  • Match the pipe dimensions, joint geometry and sealing material.
  • Request the drawing, installation instructions and applicable project documents.

Discuss your project

Request a quotation
for this product.

Tell us the selected SKU, quantity and destination. For technical selection, include the fluid, operating pressure and temperature.

Grooved Coupling
Stainless Steel Grooved System

info@pipresstech.com

We use these details to respond to your enquiry. Privacy policy.

Related products

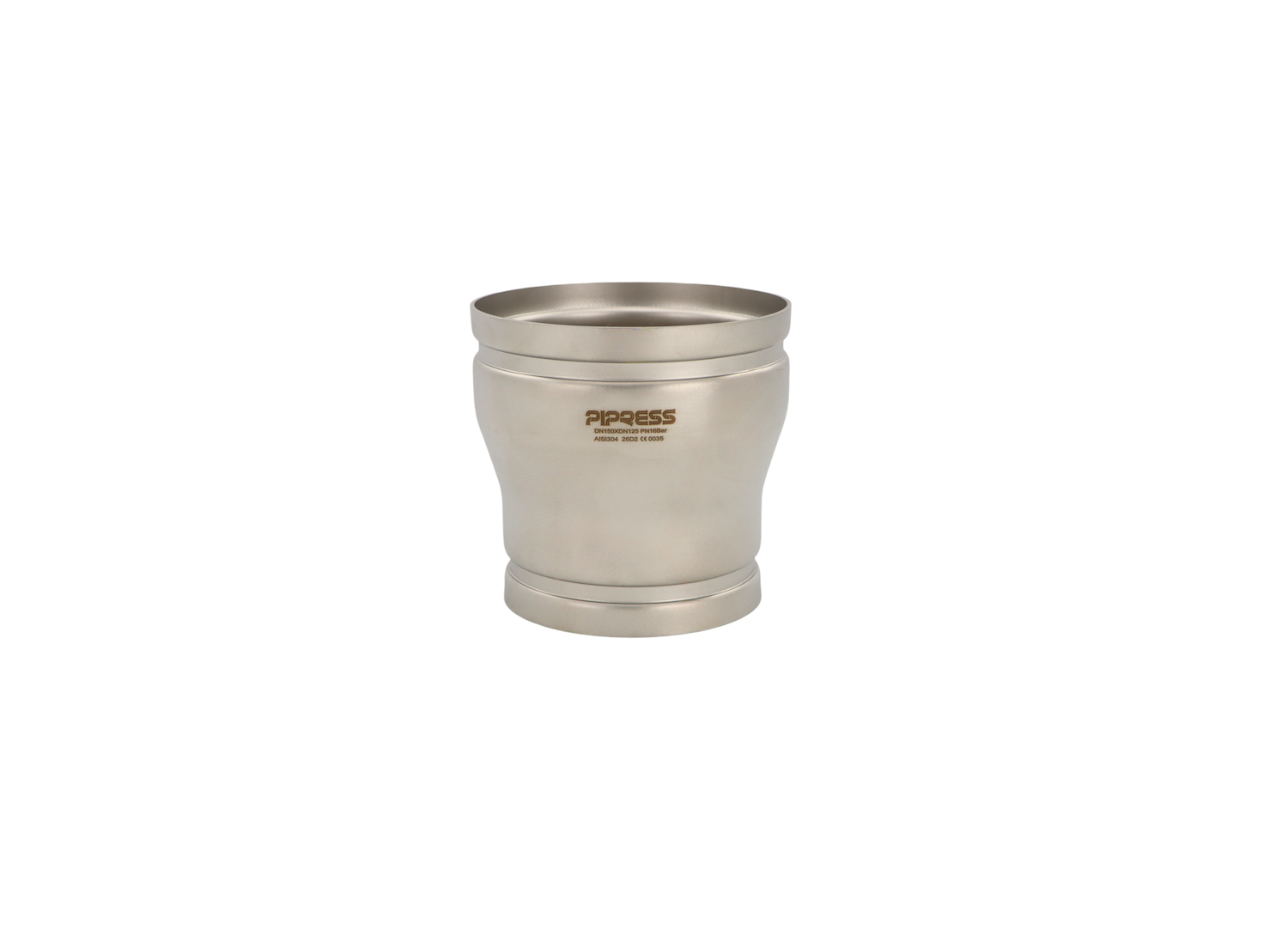

PiPress Grooved Reducer
Stainless Steel Grooved System

Grooved Reducer

10 size configurations · 20 SKUs
AISI 316L / AISI 304

View sizes & details →
PiPress Grooved 90° Elbow
Stainless Steel Grooved System

Grooved 90° Elbow

5 size configurations · 10 SKUs
AISI 316L / AISI 304

View sizes & details →

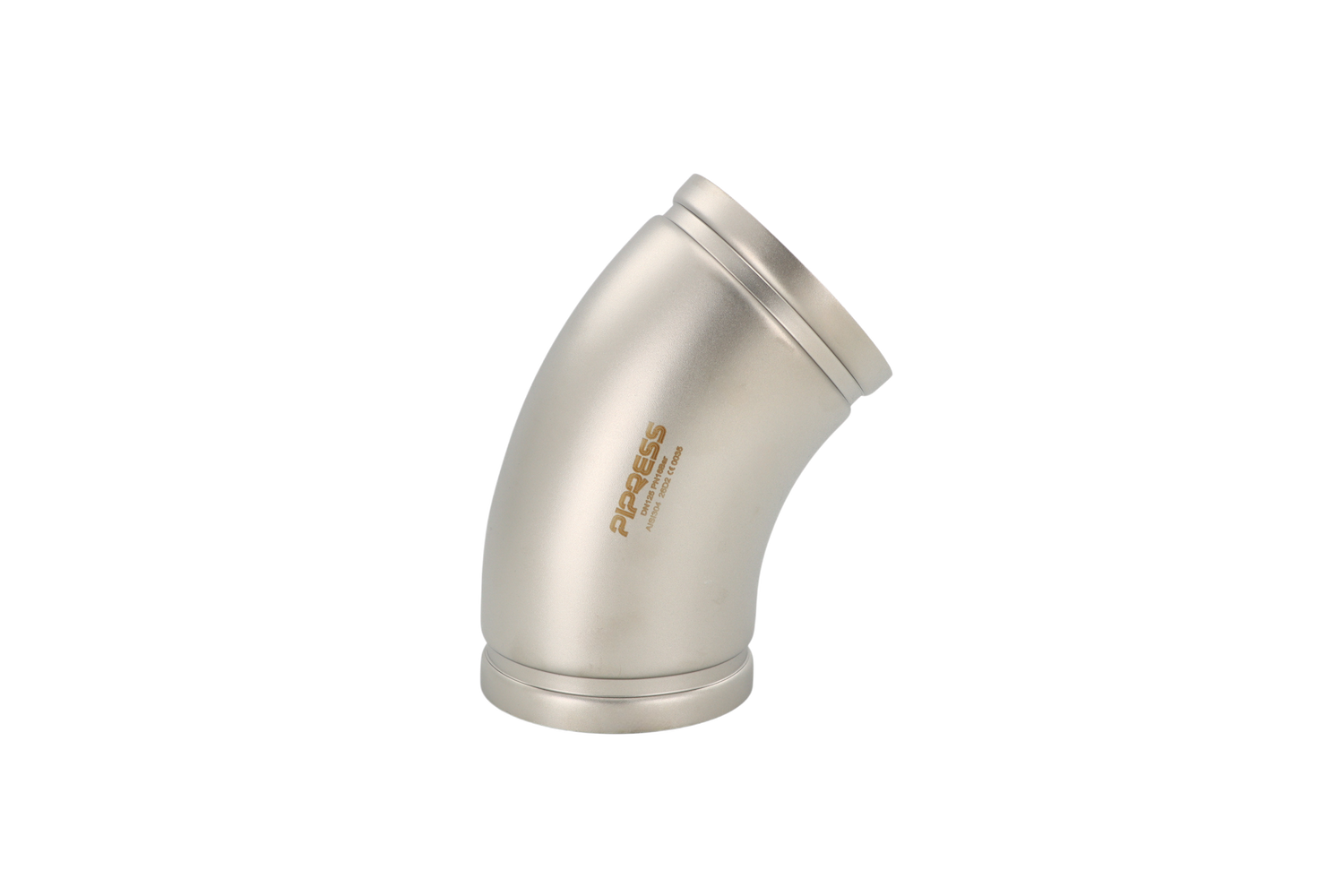

PiPress Grooved 45° Elbow
