Stainless Steel Grooved System

Grooved End Cap

Close the end of a stainless steel grooved line. Select the nominal size and material grade, and specify the matching coupling and gasket for the service.

Material options
AISI 316L / AISI 304
Connection
Grooved end
Size configurations
7 listed combinations
Selection
Pipe-end closure
Select a size ↓Request a quote

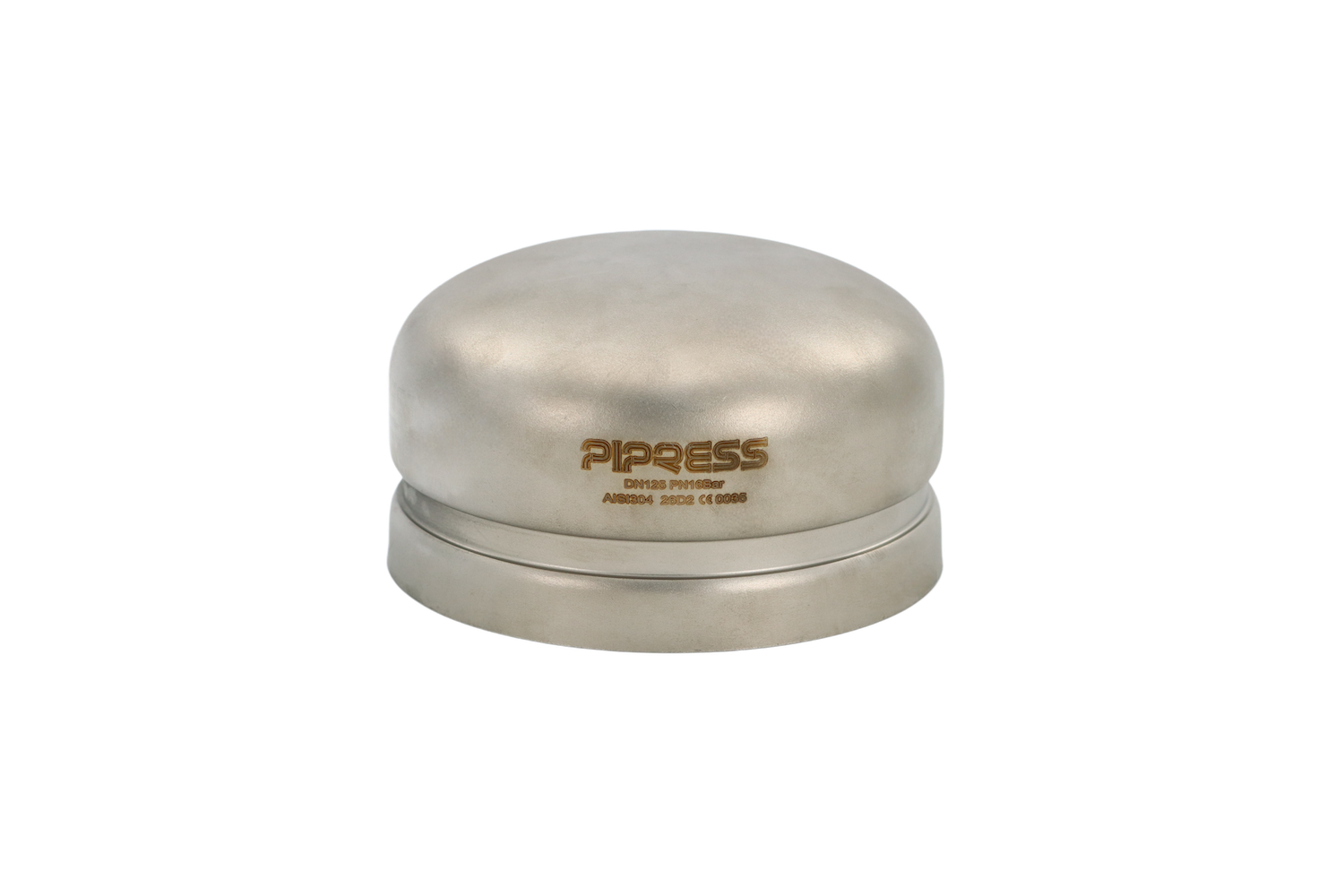

PiPress Grooved End CapProduct appearance varies by size.

Product configurations

Find your size and SKU.

Search by item code or size, select the material, and add the configuration to your enquiry.

14 SKUs

Grooved End Cap — 14 listed SKUs
Product SKUSize designationMaterialTechnical detailsEnquiry
G-C1E0000-316LDN125AISI 316L
EN 1.4404
Configuration details

PiPress Grooved End Cap, EN1.4404/AISI316L, DN125

G-C1W0000-316LDN150AISI 316L
EN 1.4404
Configuration details

PiPress Grooved End Cap, EN1.4404/AISI316L, DN150

G-C2B0000-316LDN200AISI 316L
EN 1.4404
Configuration details

PiPress Grooved End Cap, EN1.4404/AISI316L, DN200

G-C2W0000-316LDN250AISI 316L
EN 1.4404
Configuration details

PiPress Grooved End Cap, EN1.4404/AISI316L, DN250

G-C3B0000-316LDN300AISI 316L
EN 1.4404
Configuration details

PiPress Grooved End Cap, EN1.4404/AISI316L, DN300

G-C3W0000-316LDN350AISI 316L
EN 1.4404
Configuration details

PiPress Grooved End Cap, EN1.4404/AISI316L, DN350

G-C4B0000-316LDN400AISI 316L
EN 1.4404
Configuration details

PiPress Grooved End Cap, EN1.4404/AISI316L, DN400

G-C1E0000-304DN125AISI 304
EN 1.4301
Configuration details

PiPress Grooved End Cap, EN1.4301/AISI304, DN125

G-C1W0000-304DN150AISI 304
EN 1.4301
Configuration details

PiPress Grooved End Cap, EN1.4301/AISI304, DN150

G-C2B0000-304DN200AISI 304
EN 1.4301
Configuration details

PiPress Grooved End Cap, EN1.4301/AISI304, DN200

G-C2W0000-304DN250AISI 304
EN 1.4301
Configuration details

PiPress Grooved End Cap, EN1.4301/AISI304, DN250

G-C3B0000-304DN300AISI 304
EN 1.4301
Configuration details

PiPress Grooved End Cap, EN1.4301/AISI304, DN300

G-C3W0000-304DN350AISI 304
EN 1.4301
Configuration details

PiPress Grooved End Cap, EN1.4301/AISI304, DN350

G-C4B0000-304DN400AISI 304
EN 1.4301
Configuration details

PiPress Grooved End Cap, EN1.4301/AISI304, DN400

Size designations are shown as listed in the product catalogue. Confirm outside diameter, wall thickness and mating connection dimensions when ordering.

Selection & documentation

Specify the complete connection.

  • Confirm the exact item code, size and material grade.
  • Provide the fluid, operating pressure and temperature.
  • Match the pipe dimensions, joint geometry and sealing material.
  • Request the drawing, installation instructions and applicable project documents.

Discuss your project

Request a quotation
for this product.

Tell us the selected SKU, quantity and destination. For technical selection, include the fluid, operating pressure and temperature.

Grooved End Cap
Stainless Steel Grooved System

info@pipresstech.com

We use these details to respond to your enquiry. Privacy policy.
