Stainless Steel Grooved System

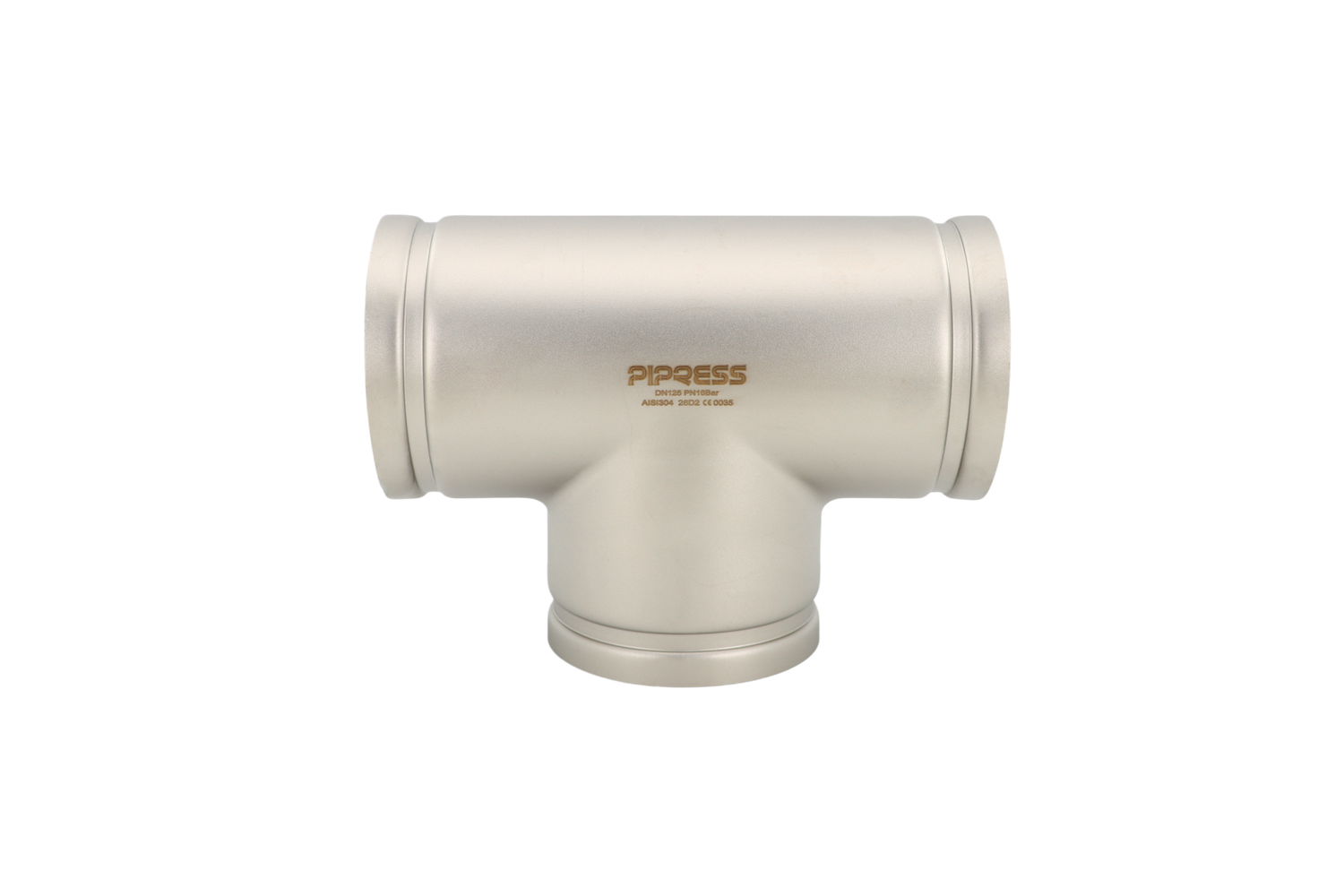

Grooved Equal Tee
Create an equal-size branch in a stainless steel grooved pipeline. Choose the nominal size and stainless steel grade for the main line and branch.
- Material options
- AISI 316L / AISI 304
- Connection
- Grooved on all three ends
- Size configurations
- 5 listed combinations
- Selection
- Equal-size branch
Product appearance varies by size.Product configurations
Find your size and SKU.
Search by item code or size, select the material, and add the configuration to your enquiry.
10 SKUs
| Product SKU | Size designation | Material | Technical details | Enquiry |
|---|---|---|---|---|
| G-T1E0000-316L | DN125 | AISI 316L EN 1.4404 | Configuration detailsPiPress Grooved Equal Tee, EN1.4404/AISI316L, DN125 | |
| G-T1W0000-316L | DN150 | AISI 316L EN 1.4404 | Configuration detailsPiPress Grooved Equal Tee, EN1.4404/AISI316L, DN150 | |
| G-T2B0000-316L | DN200 | AISI 316L EN 1.4404 | Configuration detailsPiPress Grooved Equal Tee, EN1.4404/AISI316L, DN200 | |
| G-T2W0000-316L | DN250 | AISI 316L EN 1.4404 | Configuration detailsPiPress Grooved Equal Tee, EN1.4404/AISI316L, DN250 | |
| G-T3B0000-316L | DN300 | AISI 316L EN 1.4404 | Configuration detailsPiPress Grooved Equal Tee, EN1.4404/AISI316L, DN300 | |
| G-T1E0000-304 | DN125 | AISI 304 EN 1.4301 | Configuration detailsPiPress Grooved Equal Tee, EN1.4301/AISI304, DN125 | |
| G-T1W0000-304 | DN150 | AISI 304 EN 1.4301 | Configuration detailsPiPress Grooved Equal Tee, EN1.4301/AISI304, DN150 | |
| G-T2B0000-304 | DN200 | AISI 304 EN 1.4301 | Configuration detailsPiPress Grooved Equal Tee, EN1.4301/AISI304, DN200 | |
| G-T2W0000-304 | DN250 | AISI 304 EN 1.4301 | Configuration detailsPiPress Grooved Equal Tee, EN1.4301/AISI304, DN250 | |
| G-T3B0000-304 | DN300 | AISI 304 EN 1.4301 | Configuration detailsPiPress Grooved Equal Tee, EN1.4301/AISI304, DN300 |
No matching SKU. Clear the filters or send your required size below.
Size designations are shown as listed in the product catalogue. Confirm outside diameter, wall thickness and mating connection dimensions when ordering.
Selection & documentation
Specify the complete connection.
- Confirm the exact item code, size and material grade.
- Provide the fluid, operating pressure and temperature.
- Match the pipe dimensions, joint geometry and sealing material.
- Request the drawing, installation instructions and applicable project documents.
Discuss your project
Request a quotation
for this product.
Tell us the selected SKU, quantity and destination. For technical selection, include the fluid, operating pressure and temperature.
Grooved Equal Tee
Stainless Steel Grooved System
Related products

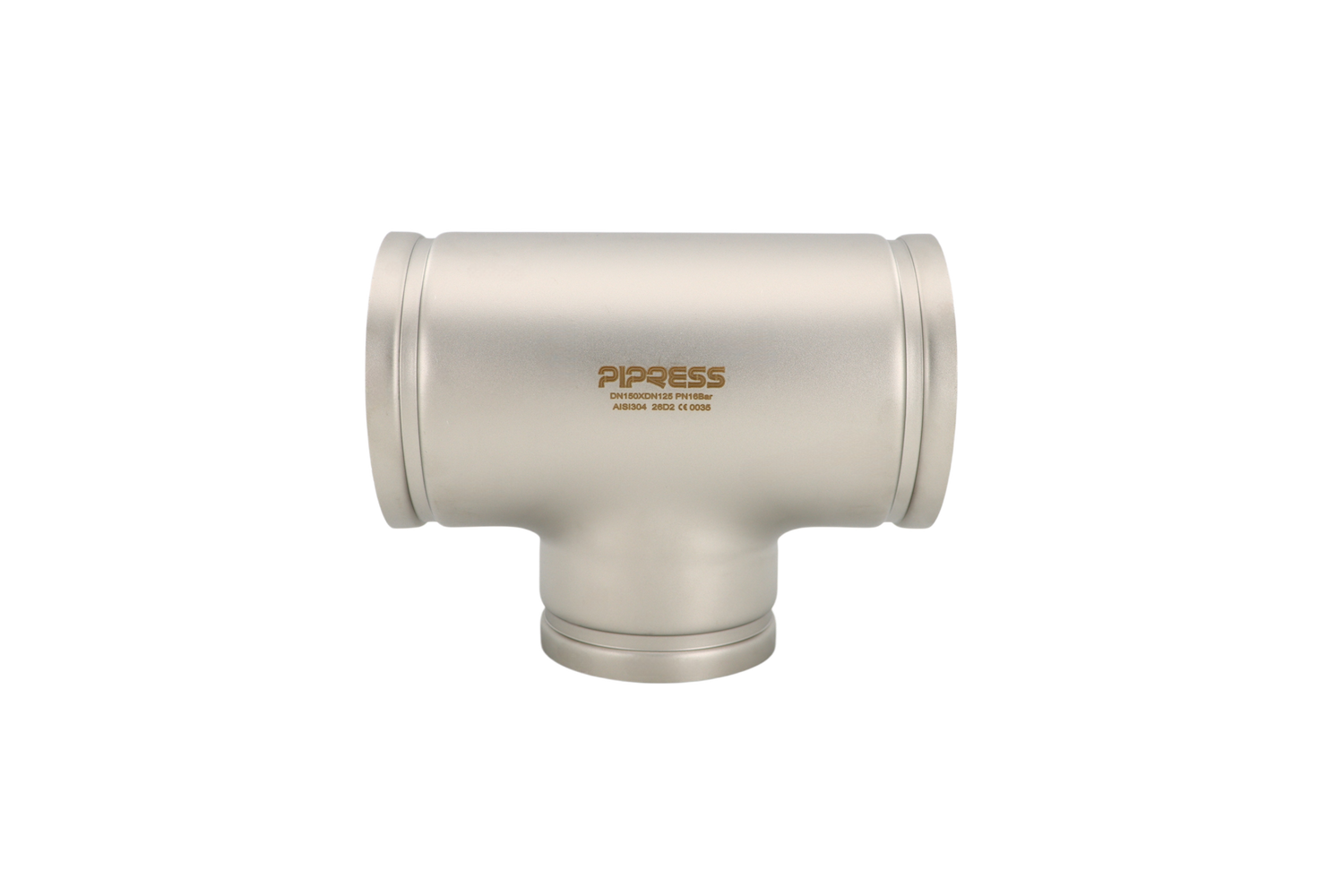

Grooved Reducing Tee
10 size configurations · 20 SKUs
AISI 316L / AISI 304

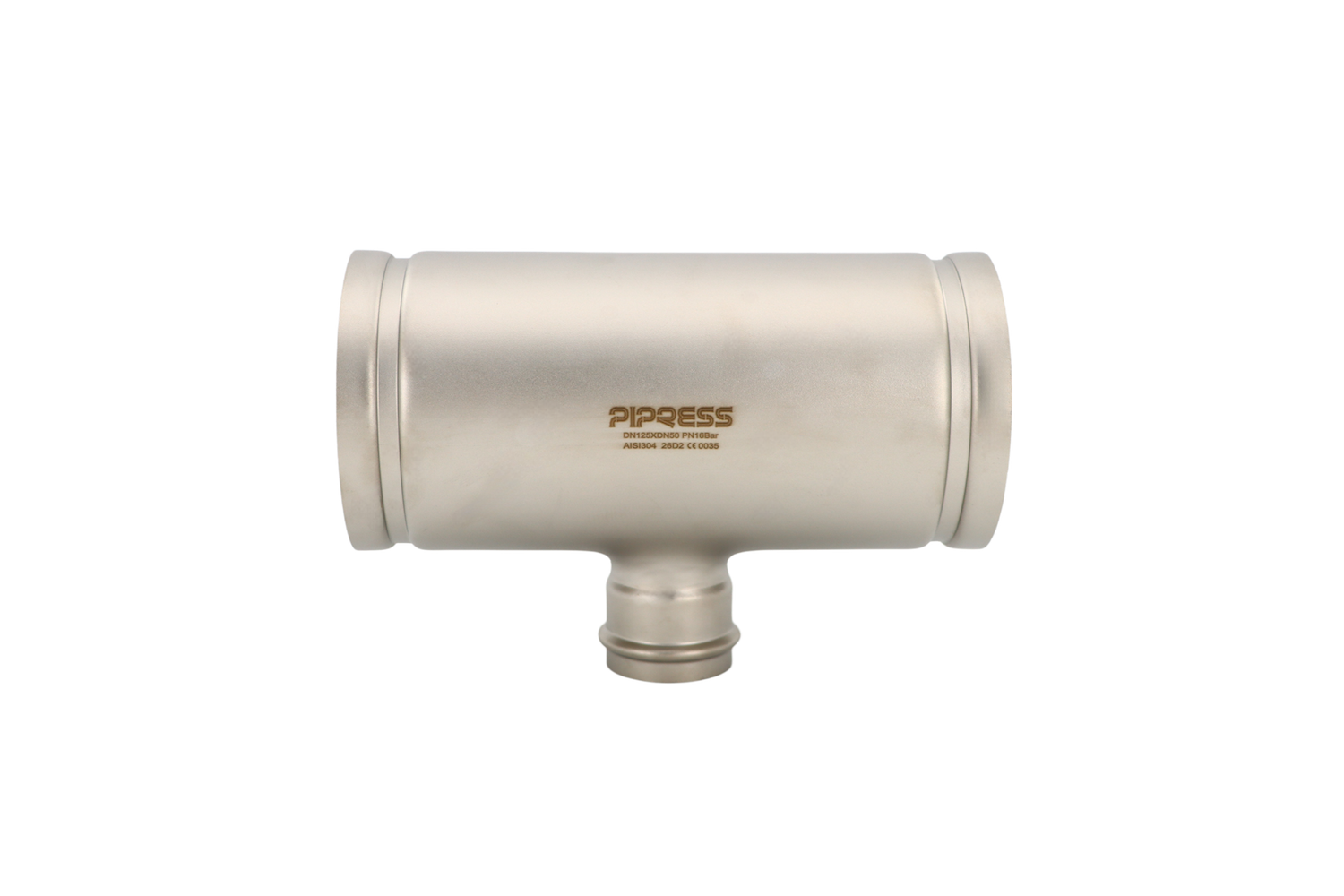

Groove-to-M-Press Reducing Tee
