Stainless Steel Grooved System

Grooved Flange Adapter

Transition between grooved pipework and a flanged connection. These catalogue configurations list an ISO 7005-1 PN16 flange designation. Confirm the mating flange and gasket details with your enquiry.

Material options
AISI 316L / AISI 304
Connection
Grooved × flange
Size configurations
7 listed combinations
Selection
ISO 7005-1 PN16 flange
Select a size ↓Request a quote

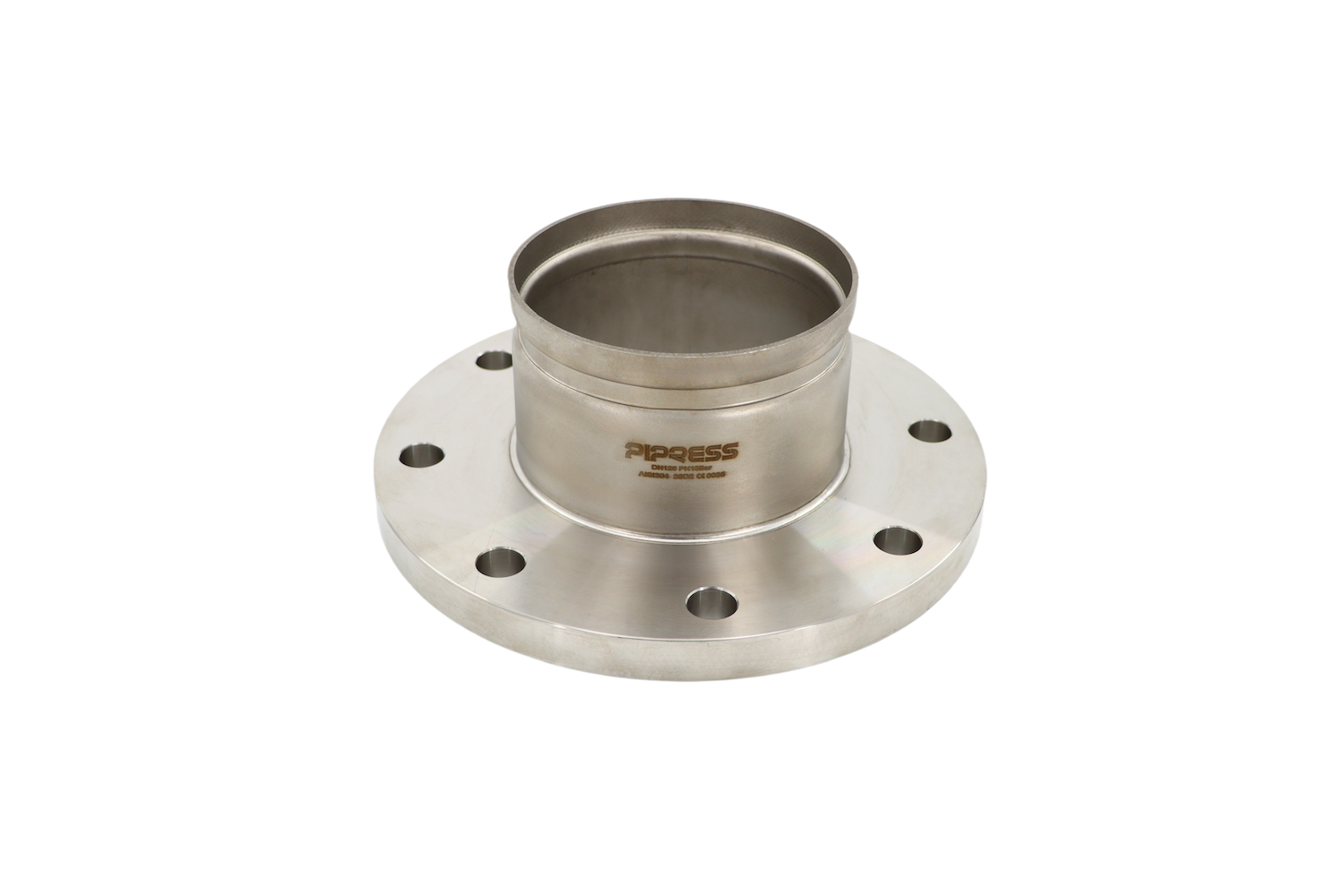

PiPress Grooved Flange AdapterProduct appearance varies by size.

Product configurations

Find your size and SKU.

Search by item code or size, select the material, and add the configuration to your enquiry.

14 SKUs

Grooved Flange Adapter — 14 listed SKUs
Product SKUSize designationMaterialTechnical detailsEnquiry
G-L1E0000-316LDN125AISI 316L
EN 1.4404
Flange designation
ISO 7005-1 PN16
Configuration details

PiPress Grooved Flange, ISO7005-1 PN16, EN1.4404/AISI316L, DN125

G-L1W0000-316LDN150AISI 316L
EN 1.4404
Flange designation
ISO 7005-1 PN16
Configuration details

PiPress Grooved Flange, ISO7005-1 PN16, EN1.4404/AISI316L, DN150

G-L2B0000-316LDN200AISI 316L
EN 1.4404
Flange designation
ISO 7005-1 PN16
Configuration details

PiPress Grooved Flange, ISO7005-1 PN16, EN1.4404/AISI316L, DN200

G-L2W0000-316LDN250AISI 316L
EN 1.4404
Flange designation
ISO 7005-1 PN16
Configuration details

PiPress Grooved Flange, ISO7005-1 PN16, EN1.4404/AISI316L, DN250

G-L3B0000-316LDN300AISI 316L
EN 1.4404
Flange designation
ISO 7005-1 PN16
Configuration details

PiPress Grooved Flange, ISO7005-1 PN16, EN1.4404/AISI316L, DN300

G-L3W0000-316LDN350AISI 316L
EN 1.4404
Flange designation
ISO 7005-1 PN16
Configuration details

PiPress Grooved Flange, ISO7005-1 PN16, EN1.4404/AISI316L, DN350

G-L4B0000-316LDN400AISI 316L
EN 1.4404
Flange designation
ISO 7005-1 PN16
Configuration details

PiPress Grooved Flange, ISO7005-1 PN16, EN1.4404/AISI316L, DN400

G-L1E0000-304DN125AISI 304
EN 1.4301
Flange designation
ISO 7005-1 PN16
Configuration details

PiPress Grooved Flange, ISO7005-1 PN16, EN1.4301/AISI304, DN125

G-L1W0000-304DN150AISI 304
EN 1.4301
Flange designation
ISO 7005-1 PN16
Configuration details

PiPress Grooved Flange, ISO7005-1 PN16, EN1.4301/AISI304, DN150

G-L2B0000-304DN200AISI 304
EN 1.4301
Flange designation
ISO 7005-1 PN16
Configuration details

PiPress Grooved Flange, ISO7005-1 PN16, EN1.4301/AISI304, DN200

G-L2W0000-304DN250AISI 304
EN 1.4301
Flange designation
ISO 7005-1 PN16
Configuration details

PiPress Grooved Flange, ISO7005-1 PN16, EN1.4301/AISI304, DN250

G-L3B0000-304DN300AISI 304
EN 1.4301
Flange designation
ISO 7005-1 PN16
Configuration details

PiPress Grooved Flange, ISO7005-1 PN16, EN1.4301/AISI304, DN300

G-L3W0000-304DN350AISI 304
EN 1.4301
Flange designation
ISO 7005-1 PN16
Configuration details

PiPress Grooved Flange, ISO7005-1 PN16, EN1.4301/AISI304, DN350

G-L4B0000-304DN400AISI 304
EN 1.4301
Flange designation
ISO 7005-1 PN16
Configuration details

PiPress Grooved Flange, ISO7005-1 PN16, EN1.4301/AISI304, DN400

Size designations are shown as listed in the product catalogue. Confirm outside diameter, wall thickness and mating connection dimensions when ordering. PN16 identifies the listed flange designation; confirm the complete assembly rating for your service.

Selection & documentation

Specify the complete connection.

  • Confirm the exact item code, size and material grade.
  • Provide the fluid, operating pressure and temperature.
  • Match the pipe dimensions, joint geometry and sealing material.
  • Request the drawing, installation instructions and applicable project documents.

Discuss your project

Request a quotation
for this product.

Tell us the selected SKU, quantity and destination. For technical selection, include the fluid, operating pressure and temperature.

Grooved Flange Adapter
Stainless Steel Grooved System
