AirLite Pro Piping System

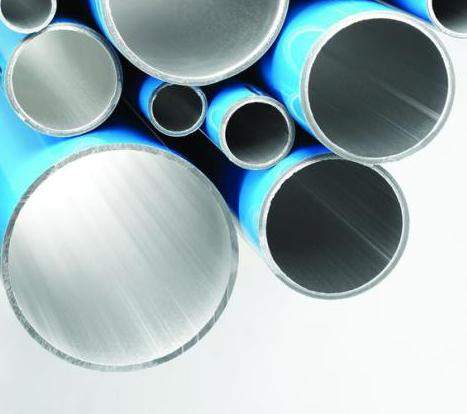

AirLite Pipe
Select pipe by the listed diameter, material and wall thickness. Length and dimensional information are shown per SKU where supplied. Confirm end preparation for the intended connection.
- Material options
- Aluminum alloy
- Connection
- Pipe; confirm end preparation
- Size configurations
- 10 listed combinations
- Selection
- Pipe selection
Product appearance varies by size.Product configurations
Find your size and SKU.
Search by item code or size, select the material, and add the configuration to your enquiry.
10 SKUs
| Product SKU | Size designation | Material | Technical details | Enquiry |
|---|---|---|---|---|
| ALP200000 Previous code: 92060 00 | DN20 | Aluminum alloy |
Configuration detailsAluminum Alloy Pipe, Blue, 5.8meters long, DN20, OD23*1.5mm | |
| ALP250000 Previous code: 92560 00 | DN25 | Aluminum alloy |
Configuration detailsAluminum Alloy Pipe, Blue, 5.8meters long, DN25, OD28.5*1.5mm | |
| ALP400000 Previous code: 94060 00 | DN40 | Aluminum alloy |
Configuration detailsAluminum Alloy Pipe, Blue, 5.8meters long, DN40, OD44*1.5mm | |
| ALP500000 Previous code: 95060 00 | DN50 | Aluminum alloy |
Configuration detailsAluminum Alloy Pipe, Blue, 5.8meters long, DN50, OD54*2mm | |
| ALP650000 Previous code: 96560 00 | DN65 | Aluminum alloy |
Configuration detailsAluminum Alloy Pipe, Blue, 5.8meters long, DN65, OD70*2.3mm, Grooved Ends | |
| ALP800000 Previous code: 98060 00 | DN80 | Aluminum alloy |
Configuration detailsAluminum Alloy Pipe, Blue, 5.8meters long, DN80, OD86*2.4mm, Grooved Ends | |
| ALP1B0000 Previous code: 91B60 00 | DN100 | Aluminum alloy |
Configuration detailsAluminum Alloy Pipe, Blue, 5.8meters long, DN100, OD106*2.5mm, Grooved Ends | |
| ALP1E0000 Previous code: 91E00 00 | DN125 | Aluminum alloy |
Configuration detailsAluminum Alloy Pipe, Blue, 5.8meters long, DN125, OD130*2.6mm, Grooved Ends | |
| ALP1W0000 Previous code: 91W60 00 | DN150 | Aluminum alloy |
Configuration detailsAluminum Alloy Pipe, Blue, 5.8meters long, DN150, OD159*3.0mm, Grooved Ends | |
| ALP2B0000 Previous code: 92B60 00 | DN200 | Aluminum alloy |
Configuration detailsAluminum Alloy Pipe, Blue, 5.8meters long, DN200, OD220*3.5mm, Grooved Ends |
No matching SKU. Clear the filters or send your required size below.
Size designations are shown as listed in the product catalogue. Confirm outside diameter, wall thickness and mating connection dimensions when ordering.
Selection & documentation
Specify the complete connection.
- Confirm the exact item code, size and material grade.
- Provide the fluid, operating pressure and temperature.
- Match the pipe dimensions, joint geometry and sealing material.
- Request the drawing, installation instructions and applicable project documents.
