Stainless Steel Press System

Stainless Steel Pipe for M-Profile Systems

Select pipe by the listed diameter, material and wall thickness. Length and dimensional information are shown per SKU where supplied. Confirm end preparation for the intended connection.

Material options
AISI 316L / AISI 304
Connection
Pipe; confirm end preparation
Size configurations
12 listed combinations
Selection
Pipe selection
Select a size ↓Request a quote

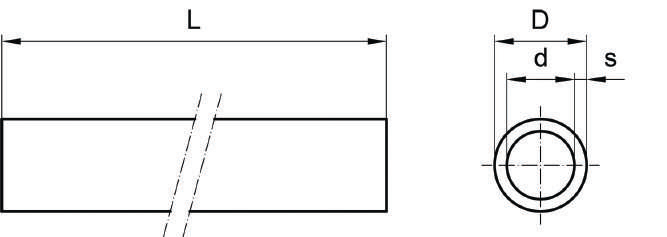

PiPress Stainless Steel Pipe for M-Profile SystemsProduct drawing from the catalogue. Dimensions vary by SKU.

Product configurations

Find your size and SKU.

Search by item code or size, select the material, and add the configuration to your enquiry.

24 SKUs

Stainless Steel Pipe for M-Profile Systems — 24 listed SKUs
Product SKUSize designationMaterialTechnical detailsEnquiry
P150000-316L15*1.0AISI 316L
EN 1.4404
Length (m)
6
Wall thickness (mm)
1
Weight (kg)
2.1
Press profile
M
Bag pack
1
Bundle pack
10
Rod volume (cm³)
1536
Bundle weight (kg)
21
Configuration details

PiPress® EN1.4404/AISI316L Pipe, OD15, 6mtrs long

P180000-316L18*1.0AISI 316L
EN 1.4404
Length (m)
6
Wall thickness (mm)
1
Weight (kg)
2.56
Press profile
M
Bag pack
1
Bundle pack
10
Rod volume (cm³)
2166
Bundle weight (kg)
25.6
Configuration details

PiPress® EN1.4404/AISI316L Pipe, OD18, 6mtrs long

P220000-316L22*1.2AISI 316L
EN 1.4404
Length (m)
6
Wall thickness (mm)
1.2
Weight (kg)
3.75
Press profile
M
Bag pack
1
Bundle pack
6
Rod volume (cm³)
3174
Bundle weight (kg)
22.5
Configuration details

PiPress® EN1.4404/AISI316L Pipe, OD22, 6mtrs long

P280000-316L28*1.2AISI 316L
EN 1.4404
Length (m)
6
Wall thickness (mm)
1.2
Weight (kg)
4.83
Press profile
M
Bag pack
1
Bundle pack
6
Rod volume (cm³)
5046
Bundle weight (kg)
28.98
Configuration details

PiPress® EN1.4404/AISI316L Pipe, OD28, 6mtrs long

P350000-316L35*1.5AISI 316L
EN 1.4404
Length (m)
6
Wall thickness (mm)
1.5
Weight (kg)
7.55
Press profile
M
Bag pack
1
Bundle pack
6
Rod volume (cm³)
7776
Bundle weight (kg)
45.3
Configuration details

PiPress® EN1.4404/AISI316L Pipe, OD35, 6mtrs long

P420000-316L42*1.5AISI 316L
EN 1.4404
Length (m)
6
Wall thickness (mm)
1.5
Weight (kg)
9.13
Press profile
M
Bag pack
1
Bundle pack
4
Rod volume (cm³)
11094
Bundle weight (kg)
36.52
Configuration details

PiPress® EN1.4404/AISI316L Pipe, OD42, 6mtrs long

P540000-316L54*1.5AISI 316L
EN 1.4404
Length (m)
6
Wall thickness (mm)
1.5
Weight (kg)
11.83
Press profile
M
Bag pack
1
Bundle pack
4
Rod volume (cm³)
18150
Bundle weight (kg)
47.32
Configuration details

PiPress® EN1.4404/AISI316L Pipe, OD54, 6mtrs long

P760000-316L76.1*2.0AISI 316L
EN 1.4404
Length (m)
6
Wall thickness (mm)
2
Weight (kg)
22.27
Press profile
M
Bag pack
1
Bundle pack
2
Rod volume (cm³)
35574
Bundle weight (kg)
44.54
Configuration details

PiPress® EN1.4404/AISI316L Pipe, OD76.1, 6mtrs long

P890000-316L88.9*2.0AISI 316L
EN 1.4404
Length (m)
6
Wall thickness (mm)
2
Weight (kg)
26.11
Press profile
M
Bag pack
1
Bundle pack
2
Rod volume (cm³)
48600
Bundle weight (kg)
52.22
Configuration details

PiPress® EN1.4404/AISI316L Pipe, OD88.9, 6mtrs long

P1B0000-316L108*2.0AISI 316L
EN 1.4404
Length (m)
6
Wall thickness (mm)
2
Weight (kg)
31.85
Press profile
M
Bag pack
1
Bundle pack
1
Rod volume (cm³)
71286
Bundle weight (kg)
31.85
Configuration details

PiPress® EN1.4404/AISI316L Pipe, OD108, 6mtrs long

P1390000-316L139.7*2.0AISI 316L
EN 1.4404
Length (m)
6
Wall thickness (mm)
2
Weight (kg)
53.56
Press profile
M
Bag pack
1
Bundle pack
1
Rod volume (cm³)
117600
Bundle weight (kg)
53.56
Configuration details

PiPress® EN1.4404/AISI316L Pipe, OD139.7, 6mtrs long

P1680000-316L168.3*2.0AISI 316L
EN 1.4404
Length (m)
6
Wall thickness (mm)
2
Weight (kg)
64.73
Press profile
M
Bag pack
1
Bundle pack
1
Rod volume (cm³)
173400
Bundle weight (kg)
64.73
Configuration details

PiPress® EN1.4404/AISI316L Pipe, OD168.3, 6mtrs long

P150000-30415*1.0AISI 304
EN 1.4301
Length (m)
6
Wall thickness (mm)
1
Weight (kg)
2.1
Press profile
M
Bag pack
1
Bundle pack
10
Rod volume (cm³)
1536
Bundle weight (kg)
21
Configuration details

PiPress® EN1.4301/AISI304 Pipe, OD15, 6mtrs long

P180000-30418*1.0AISI 304
EN 1.4301
Length (m)
6
Wall thickness (mm)
1
Weight (kg)
2.56
Press profile
M
Bag pack
1
Bundle pack
10
Rod volume (cm³)
2166
Bundle weight (kg)
25.6
Configuration details

PiPress® EN1.4301/AISI304 Pipe, OD18, 6mtrs long

P220000-30422*1.2AISI 304
EN 1.4301
Length (m)
6
Wall thickness (mm)
1.2
Weight (kg)
3.75
Press profile
M
Bag pack
1
Bundle pack
6
Rod volume (cm³)
3174
Bundle weight (kg)
22.5
Configuration details

PiPress® EN1.4301/AISI304 Pipe, OD22, 6mtrs long

P280000-30428*1.2AISI 304
EN 1.4301
Length (m)
6
Wall thickness (mm)
1.2
Weight (kg)
4.83
Press profile
M
Bag pack
1
Bundle pack
6
Rod volume (cm³)
5046
Bundle weight (kg)
28.98
Configuration details

PiPress® EN1.4301/AISI304 Pipe, OD28, 6mtrs long

P350000-30435*1.5AISI 304
EN 1.4301
Length (m)
6
Wall thickness (mm)
1.5
Weight (kg)
7.55
Press profile
M
Bag pack
1
Bundle pack
6
Rod volume (cm³)
7776
Bundle weight (kg)
45.3
Configuration details

PiPress® EN1.4301/AISI304 Pipe, OD35, 6mtrs long

P420000-30442*1.5AISI 304
EN 1.4301
Length (m)
6
Wall thickness (mm)
1.5
Weight (kg)
9.13
Press profile
M
Bag pack
1
Bundle pack
4
Rod volume (cm³)
11094
Bundle weight (kg)
36.52
Configuration details

PiPress® EN1.4301/AISI304 Pipe, OD42, 6mtrs long

P540000-30454*1.5AISI 304
EN 1.4301
Length (m)
6
Wall thickness (mm)
1.5
Weight (kg)
11.83
Press profile
M
Bag pack
1
Bundle pack
4
Rod volume (cm³)
18150
Bundle weight (kg)
47.32
Configuration details

PiPress® EN1.4301/AISI304 Pipe, OD54, 6mtrs long

P760000-30476.1*2.0AISI 304
EN 1.4301
Length (m)
6
Wall thickness (mm)
2
Weight (kg)
22.27
Press profile
M
Bag pack
1
Bundle pack
2
Rod volume (cm³)
35574
Bundle weight (kg)
44.54
Configuration details

PiPress® EN1.4301/AISI304 Pipe, OD76.1, 6mtrs long

P890000-30488.9*2.0AISI 304
EN 1.4301
Length (m)
6
Wall thickness (mm)
2
Weight (kg)
26.11
Press profile
M
Bag pack
1
Bundle pack
2
Rod volume (cm³)
48600
Bundle weight (kg)
52.22
Configuration details

PiPress® EN1.4301/AISI304 Pipe, OD88.9, 6mtrs long

P1B0000-304108*2.0AISI 304
EN 1.4301
Length (m)
6
Wall thickness (mm)
2
Weight (kg)
31.85
Press profile
M
Bag pack
1
Bundle pack
1
Rod volume (cm³)
71286
Bundle weight (kg)
31.85
Configuration details

PiPress® EN1.4301/AISI304 Pipe, OD108, 6mtrs long

P1390000-304139.7*2.0AISI 304
EN 1.4301
Length (m)
6
Wall thickness (mm)
2
Weight (kg)
53.56
Press profile
M
Bag pack
1
Bundle pack
1
Rod volume (cm³)
117600
Bundle weight (kg)
53.56
Configuration details

PiPress® EN1.4301/AISI304 Pipe, OD139.7, 6mtrs long

P1680000-304168.3*2.0AISI 304
EN 1.4301
Length (m)
6
Wall thickness (mm)
2
Weight (kg)
64.73
Press profile
M
Bag pack
1
Bundle pack
1
Rod volume (cm³)
173400
Bundle weight (kg)
64.73
Configuration details

PiPress® EN1.4301/AISI304 Pipe, OD168.3, 6mtrs long

Size designations are shown as listed in the product catalogue. Confirm outside diameter, wall thickness and mating connection dimensions when ordering.

Selection & documentation

Specify the complete connection.

  • Confirm the exact item code, size and material grade.
  • Provide the fluid, operating pressure and temperature.
  • Match the pipe dimensions, joint geometry and sealing material.
  • Request the drawing, installation instructions and applicable project documents.

Discuss your project

Request a quotation
for this product.

Tell us the selected SKU, quantity and destination. For technical selection, include the fluid, operating pressure and temperature.
