Stainless Steel Press System

M-Profile 45° Elbow

Change the direction of the pipeline with the listed elbow. Select the required angle, end connections and size from the SKU table.

Material options
AISI 316L / AISI 304
Connection
M-profile press
Size configurations
12 listed combinations
Selection
Direction change
Select a size ↓Request a quote
PiPress M-Profile 45° ElbowProduct appearance varies by size.

Product configurations

Find your size and SKU.

Search by item code or size, select the material, and add the configuration to your enquiry.

24 SKUs

M-Profile 45° Elbow — 24 listed SKUs
Product SKUSize designationMaterialTechnical detailsEnquiry
E150045-316L15AISI 316L
EN 1.4404
L (mm)
31±3
L1 (mm)
21±1
Weight (g)
41.7
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
340
Carton size (cm)
20*32*25
Carton weight (kg)
14.18
Configuration details

PiPress® 316L 45° Elbow, 15

E180045-316L18AISI 316L
EN 1.4404
L (mm)
36±3
L1 (mm)
22±1
Weight (g)
52
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
240
Carton size (cm)
20*32*25
Carton weight (kg)
12.48
Configuration details

PiPress® 316L 45° Elbow, 18

E220045-316L22AISI 316L
EN 1.4404
L (mm)
36±3
L1 (mm)
22±1
Weight (g)
71.2
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
150
Carton size (cm)
20*32*25
Carton weight (kg)
10.68
Configuration details

PiPress® 316L 45° Elbow, 22

E280045-316L28AISI 316L
EN 1.4404
L (mm)
46±4
L1 (mm)
25±1
Weight (g)
93.2
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
100
Carton size (cm)
20*32*25
Carton weight (kg)
9.32
Configuration details

PiPress® 316L 45° Elbow, 28

E350045-316L35AISI 316L
EN 1.4404
L (mm)
53±4
L1 (mm)
29±1
Weight (g)
130
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
60
Carton size (cm)
20*32*25
Carton weight (kg)
7.8
Configuration details

PiPress® 316L 45° Elbow, 35

E420045-316L42AISI 316L
EN 1.4404
L (mm)
62±4
L1 (mm)
33±1
Weight (g)
196
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
5
Carton pack (pcs)
100
Carton size (cm)
40*33*33
Carton weight (kg)
19.6
Configuration details

PiPress® 316L 45° Elbow, 42

E540045-316L54AISI 316L
EN 1.4404
L (mm)
70±4
L1 (mm)
39±1
Weight (g)
291.5
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
5
Carton pack (pcs)
50
Carton size (cm)
40*33*33
Carton weight (kg)
14.58
Configuration details

PiPress® 316L 45° Elbow, 54

E760045-316L76.1AISI 316L
EN 1.4404
L (mm)
95±4
L1 (mm)
60±2
Weight (g)
768
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
9
Carton size (cm)
40*33*33
Carton weight (kg)
6.91
Configuration details

PiPress® 316L 45° Elbow, 76.1

E890045-316L88.9AISI 316L
EN 1.4404
L (mm)
112±4
L1 (mm)
68±2
Weight (g)
1006
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
9
Carton size (cm)
40*33*33
Carton weight (kg)
9.05
Configuration details

PiPress® 316L 45° Elbow, 88.9

E1B0045-316L108AISI 316L
EN 1.4404
L (mm)
140±4
L1 (mm)
82±2
Weight (g)
1478
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
8
Carton size (cm)
40*33*33
Carton weight (kg)
11.82
Configuration details

PiPress® 316L 45° Elbow, 108

E1390045-316L139.7AISI 316L
EN 1.4404
L (mm)
204±5
L1 (mm)
105±3
Weight (g)
3816
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
2
Carton size (cm)
59.5*40*40
Carton weight (kg)
7.63
Configuration details

PiPress® 316L 45° Elbow, 139.7

E1680045-316L168.3AISI 316L
EN 1.4404
L (mm)
245±5
L1 (mm)
125±3
Weight (g)
5498
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
2
Carton size (cm)
59.5*40*40
Carton weight (kg)
11
Configuration details

PiPress® 316L 45° Elbow, 168.3

E150045-30415AISI 304
EN 1.4301
L (mm)
31±3
L1 (mm)
21±1
Weight (g)
41.7
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
340
Carton size (cm)
20*32*25
Carton weight (kg)
14.18
Configuration details

PiPress® 304 45° Elbow, 15

E180045-30418AISI 304
EN 1.4301
L (mm)
36±3
L1 (mm)
22±1
Weight (g)
52
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
240
Carton size (cm)
20*32*25
Carton weight (kg)
12.48
Configuration details

PiPress® 304 45° Elbow, 18

E220045-30422AISI 304
EN 1.4301
L (mm)
36±3
L1 (mm)
22±1
Weight (g)
71.2
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
150
Carton size (cm)
20*32*25
Carton weight (kg)
10.68
Configuration details

PiPress® 304 45° Elbow, 22

E280045-30428AISI 304
EN 1.4301
L (mm)
46±4
L1 (mm)
25±1
Weight (g)
93.2
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
100
Carton size (cm)
20*32*25
Carton weight (kg)
9.32
Configuration details

PiPress® 304 45° Elbow, 28

E350045-30435AISI 304
EN 1.4301
L (mm)
53±4
L1 (mm)
29±1
Weight (g)
130
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
60
Carton size (cm)
20*32*25
Carton weight (kg)
7.8
Configuration details

PiPress® 304 45° Elbow, 35

E420045-30442AISI 304
EN 1.4301
L (mm)
62±4
L1 (mm)
33±1
Weight (g)
196
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
5
Carton pack (pcs)
100
Carton size (cm)
40*33*33
Carton weight (kg)
19.6
Configuration details

PiPress® 304 45° Elbow, 42

E540045-30454AISI 304
EN 1.4301
L (mm)
70±4
L1 (mm)
39±1
Weight (g)
291.5
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
5
Carton pack (pcs)
50
Carton size (cm)
40*33*33
Carton weight (kg)
14.58
Configuration details

PiPress® 304 45° Elbow, 54

E760045-30476.1AISI 304
EN 1.4301
L (mm)
95±4
L1 (mm)
60±2
Weight (g)
768
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
100
Carton size (cm)
40*33*33
Carton weight (kg)
76.8
Configuration details

PiPress® 304 45° Elbow, 76.1

E890045-30488.9AISI 304
EN 1.4301
L (mm)
112±4
L1 (mm)
68±2
Weight (g)
1006
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
9
Carton size (cm)
40*33*33
Carton weight (kg)
9.05
Configuration details

PiPress® 304 45° Elbow, 88.9

E1B0045-304108AISI 304
EN 1.4301
L (mm)
140±4
L1 (mm)
82±2
Weight (g)
1478
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
9
Carton size (cm)
40*33*33
Carton weight (kg)
13.3
Configuration details

PiPress® 304 45° Elbow, 108

E1390045-304139.7AISI 304
EN 1.4301
L (mm)
204±5
L1 (mm)
105±3
Weight (g)
3816
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
2
Carton size (cm)
59.5*40*40
Carton weight (kg)
7.63
Configuration details

PiPress® 304 45° Elbow, 139.7

E1680045-304168.3AISI 304
EN 1.4301
L (mm)
245±5
L1 (mm)
125±3
Weight (g)
5498
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
2
Carton size (cm)
59.5*40*40
Carton weight (kg)
11
Configuration details

PiPress® 304 45° Elbow, 168.3

Size designations are shown as listed in the product catalogue. Confirm outside diameter, wall thickness and mating connection dimensions when ordering.

Selection & documentation

Specify the complete connection.

  • Confirm the exact item code, size and material grade.
  • Provide the fluid, operating pressure and temperature.
  • Match the pipe dimensions, joint geometry and sealing material.
  • Request the drawing, installation instructions and applicable project documents.

Discuss your project

Request a quotation
for this product.

Tell us the selected SKU, quantity and destination. For technical selection, include the fluid, operating pressure and temperature.

M-Profile 45° Elbow
Stainless Steel Press System

info@pipresstech.com

We use these details to respond to your enquiry. Privacy policy.

Related products

PiPress M-Profile 90° Elbow
Stainless Steel Press System

M-Profile 90° Elbow

12 size configurations · 24 SKUs
AISI 316L / AISI 304

View sizes & details →

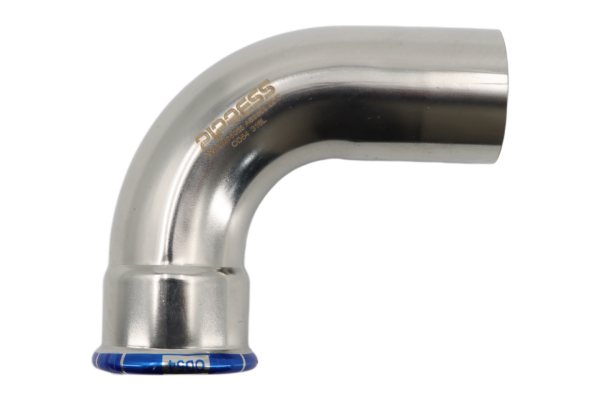

PiPress M-Profile 90° Street Elbow
