Stainless Steel Press System

M-Profile End Cap

Close a pipeline end with the listed cap. Match the size and connection type and confirm the joint sealing arrangement.

Material options
AISI 316L / AISI 304
Connection
M-profile press
Size configurations
12 listed combinations
Selection
Pipe-end closure
Select a size ↓Request a quote
PiPress M-Profile End CapProduct appearance varies by size.

Product configurations

Find your size and SKU.

Search by item code or size, select the material, and add the configuration to your enquiry.

24 SKUs

M-Profile End Cap — 24 listed SKUs
Product SKUSize designationMaterialTechnical detailsEnquiry
C150000-316L15AISI 316L
EN 1.4404
L (mm)
33±2
L1 (mm)
21±1
Weight (g)
24.7
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
800
Carton size (cm)
20*32*25
Carton weight (kg)
19.76
Configuration details

PiPress® 316L End Cap, 15

C180000-316L18AISI 316L
EN 1.4404
L (mm)
34±2
L1 (mm)
22±1
Weight (g)
29.3
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
700
Carton size (cm)
20*32*25
Carton weight (kg)
20.51
Configuration details

PiPress® 316L End Cap, 18

C220000-316L22AISI 316L
EN 1.4404
L (mm)
36±2
L1 (mm)
22±1
Weight (g)
37.6
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
450
Carton size (cm)
20*32*25
Carton weight (kg)
16.92
Configuration details

PiPress® 316L End Cap, 22

C280000-316L28AISI 316L
EN 1.4404
L (mm)
37±2
L1 (mm)
25±1
Weight (g)
48.8
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
330
Carton size (cm)
20*32*25
Carton weight (kg)
16.1
Configuration details

PiPress® 316L End Cap, 28

C350000-316L35AISI 316L
EN 1.4404
L (mm)
41±2
L1 (mm)
29±1
Weight (g)
65.9
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
180
Carton size (cm)
20*32*25
Carton weight (kg)
11.86
Configuration details

PiPress® 316L End Cap, 35

C420000-316L42AISI 316L
EN 1.4404
L (mm)
48±2
L1 (mm)
33±1
Weight (g)
95.4
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
120
Carton size (cm)
40*33*33
Carton weight (kg)
11.45
Configuration details

PiPress® 316L End Cap, 42

C540000-316L54AISI 316L
EN 1.4404
L (mm)
52±2
L1 (mm)
39±1
Weight (g)
136.1
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
60
Carton size (cm)
40*33*33
Carton weight (kg)
8.17
Configuration details

PiPress® 316L End Cap, 54

C760000-316L76.1AISI 316L
EN 1.4404
L (mm)
85±2
L1 (mm)
60±2
Weight (g)
400
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
50
Carton size (cm)
40*33*33
Carton weight (kg)
20
Configuration details

PiPress® 316L End Cap, 76.1

C890000-316L88.9AISI 316L
EN 1.4404
L (mm)
95±2
L1 (mm)
68±2
Weight (g)
515
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
36
Carton size (cm)
40*33*33
Carton weight (kg)
18.54
Configuration details

PiPress® 316L End Cap, 88.9

C1B0000-316L108AISI 316L
EN 1.4404
L (mm)
115±2
L1 (mm)
82±2
Weight (g)
765
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
18
Carton size (cm)
40*33*33
Carton weight (kg)
13.77
Configuration details

PiPress® 316L End Cap, 108

C1390000-316L139.7AISI 316L
EN 1.4404
L (mm)
130±5
L1 (mm)
105±3
Weight (g)
1800
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
4
Carton size (cm)
59.5*40*40
Carton weight (kg)
7.2
Configuration details

PiPress® 316L End Cap, 139.7

C1680000-316L168.3AISI 316L
EN 1.4404
L (mm)
155±5
L1 (mm)
125±3
Weight (g)
2300
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
4
Carton size (cm)
59.5*40*40
Carton weight (kg)
9.2
Configuration details

PiPress® 316L End Cap, 168.3

C150000-30415AISI 304
EN 1.4301
L (mm)
33±2
L1 (mm)
21±1
Weight (g)
24.7
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
800
Carton size (cm)
20*32*25
Carton weight (kg)
19.76
Configuration details

PiPress® 304 End Cap, 15

C180000-30418AISI 304
EN 1.4301
L (mm)
34±2
L1 (mm)
22±1
Weight (g)
29.3
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
700
Carton size (cm)
20*32*25
Carton weight (kg)
20.51
Configuration details

PiPress® 304 End Cap, 18

C220000-30422AISI 304
EN 1.4301
L (mm)
36±2
L1 (mm)
22±1
Weight (g)
37.6
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
450
Carton size (cm)
20*32*25
Carton weight (kg)
16.92
Configuration details

PiPress® 304 End Cap, 22

C280000-30428AISI 304
EN 1.4301
L (mm)
37±2
L1 (mm)
25±1
Weight (g)
48.8
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
330
Carton size (cm)
20*32*25
Carton weight (kg)
16.1
Configuration details

PiPress® 304 End Cap, 28

C350000-30435AISI 304
EN 1.4301
L (mm)
41±2
L1 (mm)
29±1
Weight (g)
65.9
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
180
Carton size (cm)
20*32*25
Carton weight (kg)
11.86
Configuration details

PiPress® 304 End Cap, 35

C420000-30442AISI 304
EN 1.4301
L (mm)
48±2
L1 (mm)
33±1
Weight (g)
95.4
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
120
Carton size (cm)
40*33*33
Carton weight (kg)
11.45
Configuration details

PiPress® 304 End Cap, 42

C540000-30454AISI 304
EN 1.4301
L (mm)
52±2
L1 (mm)
39±1
Weight (g)
136.1
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
60
Carton size (cm)
40*33*33
Carton weight (kg)
8.17
Configuration details

PiPress® 304 End Cap, 54

C760000-30476.1AISI 304
EN 1.4301
L (mm)
85±2
L1 (mm)
60±2
Weight (g)
400
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
50
Carton size (cm)
40*33*33
Carton weight (kg)
20
Configuration details

PiPress® 304 End Cap, 76.1

C890000-30488.9AISI 304
EN 1.4301
L (mm)
95±2
L1 (mm)
68±2
Weight (g)
515
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
36
Carton size (cm)
40*33*33
Carton weight (kg)
18.54
Configuration details

PiPress® 304 End Cap, 88.9

C1B0000-304108AISI 304
EN 1.4301
L (mm)
115±2
L1 (mm)
82±2
Weight (g)
765
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
18
Carton size (cm)
40*33*33
Carton weight (kg)
13.77
Configuration details

PiPress® 304 End Cap, 108

C1390000-304139.7AISI 304
EN 1.4301
L (mm)
130±5
L1 (mm)
105±3
Weight (g)
1800
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
4
Carton size (cm)
59.5*40*40
Carton weight (kg)
7.2
Configuration details

PiPress® 304 End Cap, 139.7

C1680000-304168.3AISI 304
EN 1.4301
L (mm)
155±5
L1 (mm)
125±3
Weight (g)
2300
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
4
Carton size (cm)
59.5*40*40
Carton weight (kg)
9.2
Configuration details

PiPress® 304 End Cap, 168.3

Size designations are shown as listed in the product catalogue. Confirm outside diameter, wall thickness and mating connection dimensions when ordering.

Selection & documentation

Specify the complete connection.

  • Confirm the exact item code, size and material grade.
  • Provide the fluid, operating pressure and temperature.
  • Match the pipe dimensions, joint geometry and sealing material.
  • Request the drawing, installation instructions and applicable project documents.

Discuss your project

Request a quotation
for this product.

Tell us the selected SKU, quantity and destination. For technical selection, include the fluid, operating pressure and temperature.

M-Profile End Cap
Stainless Steel Press System

info@pipresstech.com

We use these details to respond to your enquiry. Privacy policy.

Related products

PiPress M-Profile Equal Coupling
Stainless Steel Press System

M-Profile Equal Coupling

12 size configurations · 24 SKUs
AISI 316L / AISI 304

View sizes & details →

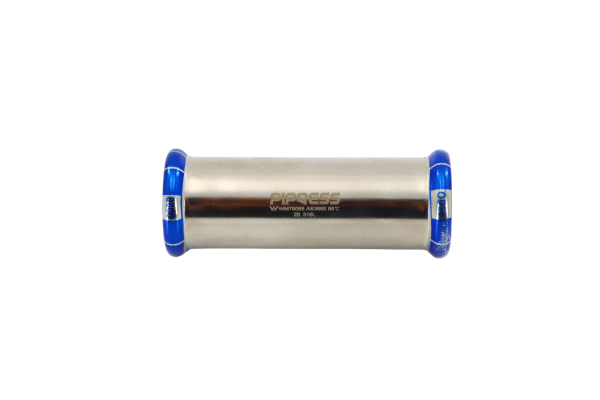

PiPress M-Profile Slip Coupling
