Stainless Steel Press System

M-Profile Pipe Bridge

Route the pipe across an obstruction using the listed pipe bridge. Check the connection size and dimensional drawing for the required clearance.

Material options
AISI 316L / AISI 304
Connection
M-profile press
Size configurations
4 listed combinations
Selection
Pipe routing
Select a size ↓Request a quote

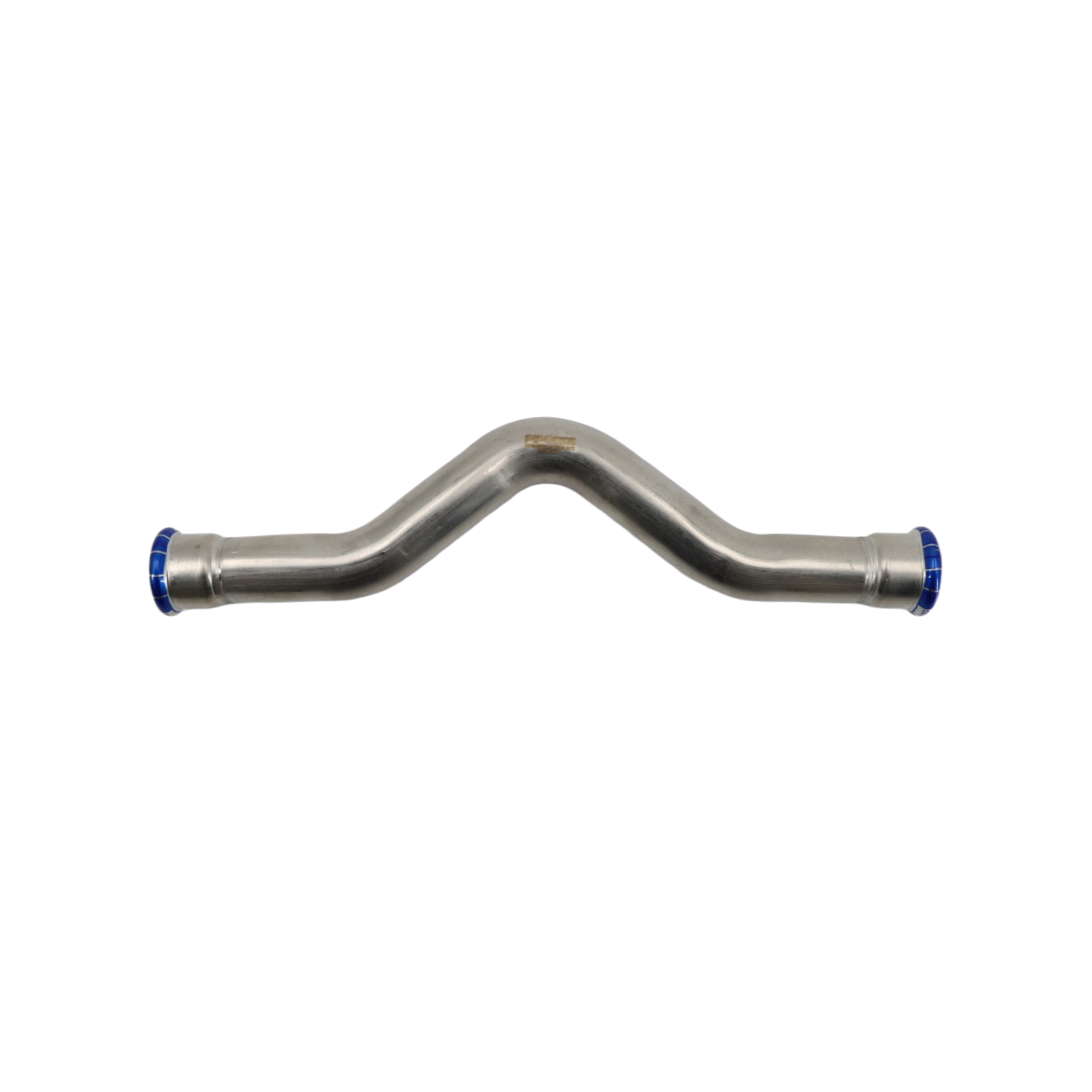

PiPress M-Profile Pipe BridgeRepresentative PiPress M-profile product. Size, finish and markings vary by configuration.

Product geometry

Catalogue drawing

Use the SKU table for listed dimensions and request the drawing for your exact size before installation.

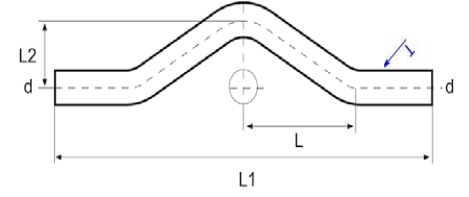

M-Profile Pipe Bridge catalogue drawing

Product configurations

Find your size and SKU.

Search by item code or size, select the material, and add the configuration to your enquiry.

8 SKUs

M-Profile Pipe Bridge — 8 listed SKUs
Product SKUSize designationMaterialTechnical detailsEnquiry
Q150000-316L15AISI 316L
EN 1.4404
L (mm)
50±3
L1 (mm)
185±3
Weight (g)
76
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
100
Carton size (cm)
20*32*25
Carton weight (kg)
7.6
Configuration details

PiPress® 316L Pipe Bridge, 15

Q180000-316L18AISI 316L
EN 1.4404
L (mm)
55±3
L1 (mm)
205±3
Weight (g)
150
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
100
Carton size (cm)
20*32*25
Carton weight (kg)
15
Configuration details

PiPress® 316L Pipe Bridge, 18

Q220000-316L22AISI 316L
EN 1.4404
L (mm)
70±3
L1 (mm)
221±3
Weight (g)
202
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
100
Carton size (cm)
20*32*25
Carton weight (kg)
20.2
Configuration details

PiPress® 316L Pipe Bridge, 22

Q280000-316L28AISI 316L
EN 1.4404
L (mm)
75±3
L1 (mm)
250±3
Weight (g)
350
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
100
Carton size (cm)
20*32*25
Carton weight (kg)
35
Configuration details

PiPress® 316L Pipe Bridge, 28

Q150000-30415AISI 304
EN 1.4301
L (mm)
50±3
L1 (mm)
185±3
Weight (g)
76
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
100
Carton size (cm)
20*32*25
Carton weight (kg)
7.6
Configuration details

PiPress® 304 Pipe Bridge, 15

Q180000-30418AISI 304
EN 1.4301
L (mm)
55±3
L1 (mm)
205±3
Weight (g)
150
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
100
Carton size (cm)
20*32*25
Carton weight (kg)
15
Configuration details

PiPress® 304 Pipe Bridge, 18

Q220000-30422AISI 304
EN 1.4301
L (mm)
70±3
L1 (mm)
221±3
Weight (g)
202
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
100
Carton size (cm)
20*32*25
Carton weight (kg)
20.2
Configuration details

PiPress® 304 Pipe Bridge, 22

Q280000-30428AISI 304
EN 1.4301
L (mm)
75±3
L1 (mm)
250±3
Weight (g)
350
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
100
Carton size (cm)
20*32*25
Carton weight (kg)
35
Configuration details

PiPress® 304 Pipe Bridge, 28

Size designations are shown as listed in the product catalogue. Confirm outside diameter, wall thickness and mating connection dimensions when ordering.

Selection & documentation

Specify the complete connection.

  • Confirm the exact item code, size and material grade.
  • Provide the fluid, operating pressure and temperature.
  • Match the pipe dimensions, joint geometry and sealing material.
  • Request the drawing, installation instructions and applicable project documents.

Discuss your project

Request a quotation
for this product.

Tell us the selected SKU, quantity and destination. For technical selection, include the fluid, operating pressure and temperature.

M-Profile Pipe Bridge
