Stainless Steel Press System

M-Profile Reducing Tee

Create a reduced branch from a larger main line. Match the run and branch dimensions in the SKU table to your piping layout.

Material options
AISI 316L / AISI 304
Connection
M-profile press
Size configurations
48 listed combinations
Selection
Reduced branch
Select a size ↓Request a quote

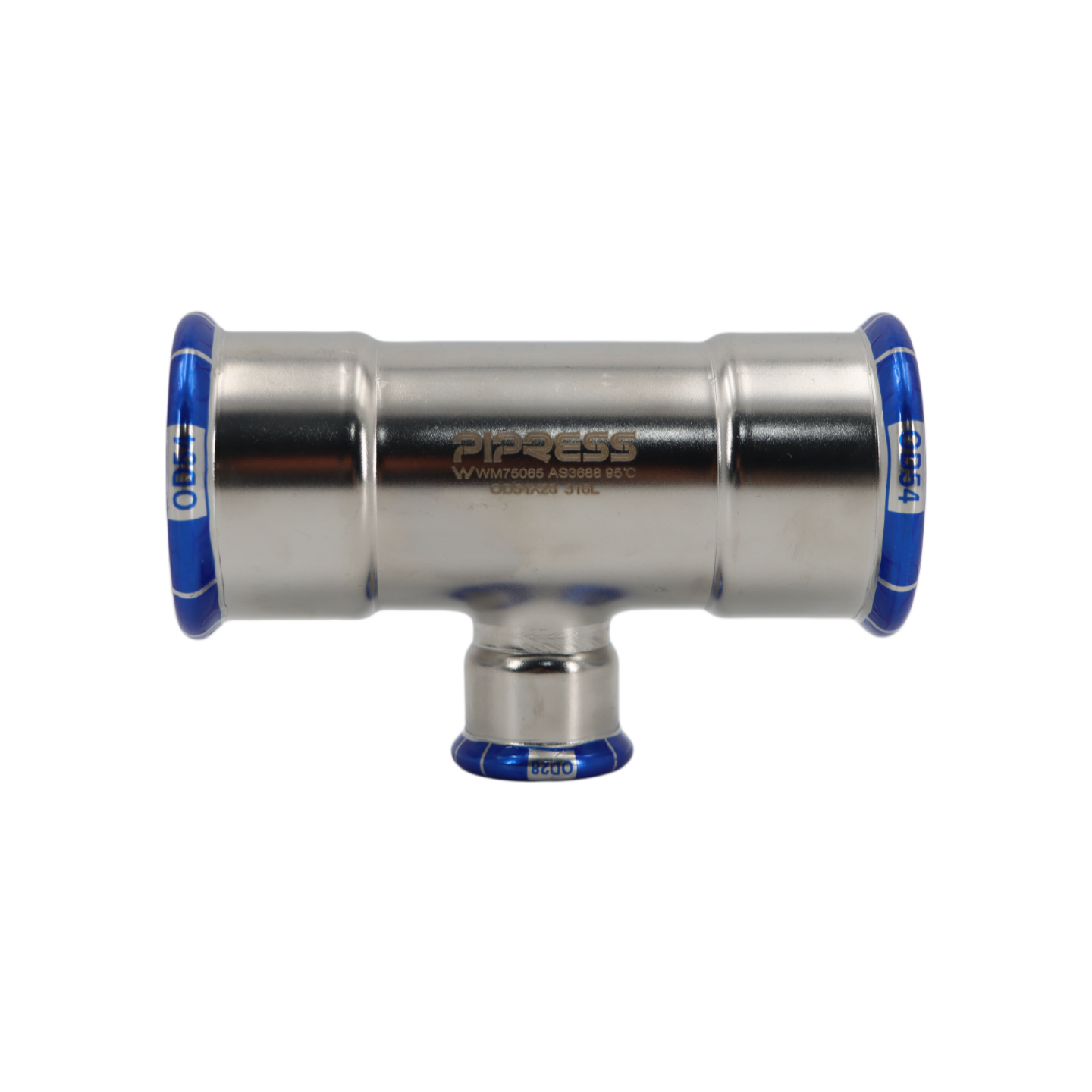

PiPress M-Profile Reducing TeeRepresentative PiPress M-profile product. Size, finish and markings vary by configuration.

Product geometry

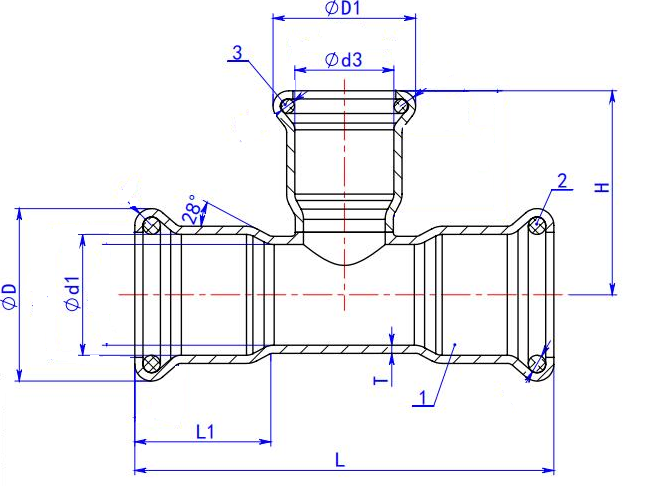

Catalogue drawing

Use the SKU table for listed dimensions and request the drawing for your exact size before installation.

M-Profile Reducing Tee catalogue drawing

Product configurations

Find your size and SKU.

Search by item code or size, select the material, and add the configuration to your enquiry.

96 SKUs

M-Profile Reducing Tee — 96 listed SKUs
Product SKUSize designationMaterialTechnical detailsEnquiry
T18150R-316L18x15AISI 316L
EN 1.4404
L (mm)
71±2
L1 (mm)
21±1
Weight (g)
73.7
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
170
Carton size (cm)
20*32*25
Carton weight (kg)
12.53
Configuration details

PiPress® 316L Reducing Tee, 18x15

T22150R-316L22x15AISI 316L
EN 1.4404
L (mm)
77±2
L1 (mm)
22±1
Weight (g)
95
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
100
Carton size (cm)
20*32*25
Carton weight (kg)
9.5
Configuration details

PiPress® 316L Reducing Tee, 22x15

T22180R-316L22x18AISI 316L
EN 1.4404
L (mm)
77±2
L1 (mm)
22±1
Weight (g)
97.8
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
100
Carton size (cm)
20*32*25
Carton weight (kg)
9.78
Configuration details

PiPress® 316L Reducing Tee, 22x18

T28150R-316L28x15AISI 316L
EN 1.4404
L (mm)
88±2
L1 (mm)
22±1
Weight (g)
117.6
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
100
Carton size (cm)
20*32*25
Carton weight (kg)
11.76
Configuration details

PiPress® 316L Reducing Tee, 28x15

T28180R-316L28x18AISI 316L
EN 1.4404
L (mm)
88±2
L1 (mm)
22±1
Weight (g)
123
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
70
Carton size (cm)
20*32*25
Carton weight (kg)
8.61
Configuration details

PiPress® 316L Reducing Tee, 28x18

T28220R-316L28x22AISI 316L
EN 1.4404
L (mm)
88±2
L1 (mm)
22±1
Weight (g)
128
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
70
Carton size (cm)
20*32*25
Carton weight (kg)
8.96
Configuration details

PiPress® 316L Reducing Tee, 28x22

T35150R-316L35x15AISI 316L
EN 1.4404
L (mm)
101±2
L1 (mm)
29±1
Weight (g)
160.9
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
60
Carton size (cm)
20*32*25
Carton weight (kg)
9.65
Configuration details

PiPress® 316L Reducing Tee, 35x15

T35180R-316L35x18AISI 316L
EN 1.4404
L (mm)
101±2
L1 (mm)
29±1
Weight (g)
167.7
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
40
Carton size (cm)
20*32*25
Carton weight (kg)
6.71
Configuration details

PiPress® 316L Reducing Tee, 35x18

T35220R-316L35x22AISI 316L
EN 1.4404
L (mm)
101±2
L1 (mm)
29±1
Weight (g)
167.4
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
40
Carton size (cm)
20*32*25
Carton weight (kg)
6.7
Configuration details

PiPress® 316L Reducing Tee, 35x22

T35280R-316L35x28AISI 316L
EN 1.4404
L (mm)
101±2
L1 (mm)
29±1
Weight (g)
176.3
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
40
Carton size (cm)
20*32*25
Carton weight (kg)
7.05
Configuration details

PiPress® 316L Reducing Tee, 35x28

T42150R-316L42x15AISI 316L
EN 1.4404
L (mm)
120±2
L1 (mm)
33±1
Weight (g)
226.5
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
5
Carton pack (pcs)
40
Carton size (cm)
40*33*33
Carton weight (kg)
9.06
Configuration details

PiPress® 316L Reducing Tee, 42x15

T42180R-316L42x18AISI 316L
EN 1.4404
L (mm)
120±2
L1 (mm)
33±1
Weight (g)
230.6
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
5
Carton pack (pcs)
40
Carton size (cm)
40*33*33
Carton weight (kg)
9.22
Configuration details

PiPress® 316L Reducing Tee, 42x18

T42220R-316L42x22AISI 316L
EN 1.4404
L (mm)
120±2
L1 (mm)
33±1
Weight (g)
237.8
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
5
Carton pack (pcs)
80
Carton size (cm)
40*33*33
Carton weight (kg)
19.02
Configuration details

PiPress® 316L Reducing Tee, 42x22

T42280R-316L42x28AISI 316L
EN 1.4404
L (mm)
120±2
L1 (mm)
33±1
Weight (g)
241
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
5
Carton pack (pcs)
70
Carton size (cm)
40*33*33
Carton weight (kg)
16.87
Configuration details

PiPress® 316L Reducing Tee, 42x28

T42350R-316L42x35AISI 316L
EN 1.4404
L (mm)
120±2
L1 (mm)
33±1
Weight (g)
254
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
5
Carton pack (pcs)
60
Carton size (cm)
40*33*33
Carton weight (kg)
15.24
Configuration details

PiPress® 316L Reducing Tee, 42x35

T54150R-316L54x15AISI 316L
EN 1.4404
L (mm)
144±2
L1 (mm)
39±1
Weight (g)
328.8
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
5
Carton pack (pcs)
40
Carton size (cm)
40*33*33
Carton weight (kg)
13.15
Configuration details

PiPress® 316L Reducing Tee, 54x15

T54180R-316L54x18AISI 316L
EN 1.4404
L (mm)
144±2
L1 (mm)
39±1
Weight (g)
330.2
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
5
Carton pack (pcs)
40
Carton size (cm)
40*33*33
Carton weight (kg)
13.21
Configuration details

PiPress® 316L Reducing Tee, 54x18

T54220R-316L54x22AISI 316L
EN 1.4404
L (mm)
144±2
L1 (mm)
39±1
Weight (g)
338.9
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
5
Carton pack (pcs)
40
Carton size (cm)
40*33*33
Carton weight (kg)
13.56
Configuration details

PiPress® 316L Reducing Tee, 54x22

T54280R-316L54x28AISI 316L
EN 1.4404
L (mm)
144±2
L1 (mm)
39±1
Weight (g)
346.6
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
5
Carton pack (pcs)
40
Carton size (cm)
40*33*33
Carton weight (kg)
13.86
Configuration details

PiPress® 316L Reducing Tee, 54x28

T54350R-316L54x35AISI 316L
EN 1.4404
L (mm)
144±2
L1 (mm)
39±1
Weight (g)
357.4
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
5
Carton pack (pcs)
30
Carton size (cm)
40*33*33
Carton weight (kg)
10.72
Configuration details

PiPress® 316L Reducing Tee, 54x35

T54420R-316L54x42AISI 316L
EN 1.4404
L (mm)
144±2
L1 (mm)
39±1
Weight (g)
377.3
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
5
Carton pack (pcs)
30
Carton size (cm)
40*33*33
Carton weight (kg)
11.32
Configuration details

PiPress® 316L Reducing Tee, 54x42

T76220R-316L76.1x22AISI 316L
EN 1.4404
L (mm)
232±2
L1 (mm)
60±2
Weight (g)
975
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
20
Carton size (cm)
40*33*33
Carton weight (kg)
19.5
Configuration details

PiPress® 316L Reducing Tee, 76.1x22

T76280R-316L76.1x28AISI 316L
EN 1.4404
L (mm)
232±2
L1 (mm)
60±2
Weight (g)
985
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
20
Carton size (cm)
40*33*33
Carton weight (kg)
19.7
Configuration details

PiPress® 316L Reducing Tee, 76.1x28

T76350R-316L76.1x35AISI 316L
EN 1.4404
L (mm)
232±2
L1 (mm)
60±2
Weight (g)
995.3
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
18
Carton size (cm)
40*33*33
Carton weight (kg)
17.92
Configuration details

PiPress® 316L Reducing Tee, 76.1x35

T76420R-316L76.1x42AISI 316L
EN 1.4404
L (mm)
232±2
L1 (mm)
60±2
Weight (g)
1030
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
18
Carton size (cm)
40*33*33
Carton weight (kg)
18.54
Configuration details

PiPress® 316L Reducing Tee, 76.1x42

T76540R-316L76.1x54AISI 316L
EN 1.4404
L (mm)
232±2
L1 (mm)
60±2
Weight (g)
1075
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
16
Carton size (cm)
40*33*33
Carton weight (kg)
17.2
Configuration details

PiPress® 316L Reducing Tee, 76.1x54

T89220R-316L88.9x22AISI 316L
EN 1.4404
L (mm)
262±3
L1 (mm)
68±2
Weight (g)
1245
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
15
Carton size (cm)
40*33*33
Carton weight (kg)
18.68
Configuration details

PiPress® 316L Reducing Tee, 88.9x22

T89280R-316L88.9x28AISI 316L
EN 1.4404
L (mm)
262±3
L1 (mm)
68±2
Weight (g)
1285
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
15
Carton size (cm)
40*33*33
Carton weight (kg)
19.28
Configuration details

PiPress® 316L Reducing Tee, 88.9x28

T89350R-316L88.9x35AISI 316L
EN 1.4404
L (mm)
262±3
L1 (mm)
68±2
Weight (g)
1306.5
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
13
Carton size (cm)
40*33*33
Carton weight (kg)
16.98
Configuration details

PiPress® 316L Reducing Tee, 88.9x35

T89420R-316L88.9x42AISI 316L
EN 1.4404
L (mm)
262±3
L1 (mm)
68±2
Weight (g)
1335
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
13
Carton size (cm)
40*33*33
Carton weight (kg)
17.36
Configuration details

PiPress® 316L Reducing Tee, 88.9x42

T89540R-316L88.9x54AISI 316L
EN 1.4404
L (mm)
262±3
L1 (mm)
68±2
Weight (g)
1365
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
13
Carton size (cm)
40*33*33
Carton weight (kg)
17.75
Configuration details

PiPress® 316L Reducing Tee, 88.9x54

T89760R-316L88.9x76.1AISI 316L
EN 1.4404
L (mm)
262±3
L1 (mm)
68±2
Weight (g)
1485
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
10
Carton size (cm)
40*33*33
Carton weight (kg)
14.85
Configuration details

PiPress® 316L Reducing Tee, 88.9x76.1

T1B220R-316L108x22AISI 316L
EN 1.4404
L (mm)
312±3
L1 (mm)
82±2
Weight (g)
1798
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
5
Carton size (cm)
40*33*33
Carton weight (kg)
8.99
Configuration details

PiPress® 316L Reducing Tee, 108x22

T1B280R-316L108x28AISI 316L
EN 1.4404
L (mm)
312±3
L1 (mm)
82±2
Weight (g)
1798
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
5
Carton size (cm)
40*33*33
Carton weight (kg)
8.99
Configuration details

PiPress® 316L Reducing Tee, 108x28

T1B350R-316L108x35AISI 316L
EN 1.4404
L (mm)
312±3
L1 (mm)
82±2
Weight (g)
1822
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
5
Carton size (cm)
40*33*33
Carton weight (kg)
9.11
Configuration details

PiPress® 316L Reducing Tee, 108x35

T1B420R-316L108x42AISI 316L
EN 1.4404
L (mm)
312±3
L1 (mm)
82±2
Weight (g)
1820
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
5
Carton size (cm)
40*33*33
Carton weight (kg)
9.1
Configuration details

PiPress® 316L Reducing Tee, 108x42

T1B540R-316L108x54AISI 316L
EN 1.4404
L (mm)
312±3
L1 (mm)
82±2
Weight (g)
1852
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
5
Carton size (cm)
40*33*33
Carton weight (kg)
9.26
Configuration details

PiPress® 316L Reducing Tee, 108x54

T1B760R-316L108x76.1AISI 316L
EN 1.4404
L (mm)
312±3
L1 (mm)
82±2
Weight (g)
2014
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
5
Carton size (cm)
40*33*33
Carton weight (kg)
10.07
Configuration details

PiPress® 316L Reducing Tee, 108x76.1

T1B890R-316L108x88.9AISI 316L
EN 1.4404
L (mm)
312±3
L1 (mm)
82±2
Weight (g)
2126
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
5
Carton size (cm)
40*33*33
Carton weight (kg)
10.63
Configuration details

PiPress® 316L Reducing Tee, 108x88.9

T139350R-316L139.7x35AISI 316L
EN 1.4404
L (mm)
395±10
L1 (mm)
105±3
Weight (g)
2126
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
2
Carton size (cm)
59.5*40*40
Carton weight (kg)
4.25
Configuration details

PiPress® 316L Reducing Tee, 139.7x35

T139760R-316L139.7x76.1AISI 316L
EN 1.4404
L (mm)
395±10
L1 (mm)
105±3
Weight (g)
3019
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
2
Carton size (cm)
59.5*40*40
Carton weight (kg)
6.04
Configuration details

PiPress® 316L Reducing Tee, 139.7x76.1

T139890R-316L139.7x88.9AISI 316L
EN 1.4404
L (mm)
395±10
L1 (mm)
105±3
Weight (g)
3198
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
2
Carton size (cm)
59.5*40*40
Carton weight (kg)
6.4
Configuration details

PiPress® 316L Reducing Tee, 139.7x88.9

T139108R-316L139.7x108AISI 316L
EN 1.4404
L (mm)
395±10
L1 (mm)
105±3
Weight (g)
3177
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
2
Carton size (cm)
59.5*40*40
Carton weight (kg)
6.35
Configuration details

PiPress® 316L Reducing Tee, 139.7x108

T168350R-316L168.3x35AISI 316L
EN 1.4404
L (mm)
515±10
L1 (mm)
125±3
Weight (g)
6010
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
2
Carton size (cm)
59.5*40*40
Carton weight (kg)
12.02
Configuration details

PiPress® 316L Reducing Tee, 168.3x35

T168760R-316L168.3x76.1AISI 316L
EN 1.4404
L (mm)
515±10
L1 (mm)
125±3
Weight (g)
6398
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
2
Carton size (cm)
59.5*40*40
Carton weight (kg)
12.8
Configuration details

PiPress® 316L Reducing Tee, 168.3x76.1

T168890R-316L168.3x88.9AISI 316L
EN 1.4404
L (mm)
515±10
L1 (mm)
125±3
Weight (g)
6410
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
2
Carton size (cm)
59.5*40*40
Carton weight (kg)
12.82
Configuration details

PiPress® 316L Reducing Tee, 168.3x88.9

T168108R-316L168.3x108AISI 316L
EN 1.4404
L (mm)
515±10
L1 (mm)
125±3
Weight (g)
6412
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
2
Carton size (cm)
59.5*40*40
Carton weight (kg)
12.82
Configuration details

PiPress® 316L Reducing Tee, 168.3x108

T168139R-316L168.3x139.7AISI 316L
EN 1.4404
L (mm)
515±10
L1 (mm)
125±3
Weight (g)
6680
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
2
Carton size (cm)
59.5*40*40
Carton weight (kg)
13.36
Configuration details

PiPress® 316L Reducing Tee, 168.3x139.7

T18150R-30418x15AISI 304
EN 1.4301
L (mm)
71±2
L1 (mm)
21±1
Weight (g)
73.7
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
170
Carton size (cm)
20*32*25
Carton weight (kg)
12.53
Configuration details

PiPress® 304 Reducing Tee, 18x15

T22150R-30422x15AISI 304
EN 1.4301
L (mm)
77±2
L1 (mm)
22±1
Weight (g)
95
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
100
Carton size (cm)
20*32*25
Carton weight (kg)
9.5
Configuration details

PiPress® 304 Reducing Tee, 22x15

T22180R-30422x18AISI 304
EN 1.4301
L (mm)
77±2
L1 (mm)
22±1
Weight (g)
97.8
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
100
Carton size (cm)
20*32*25
Carton weight (kg)
9.78
Configuration details

PiPress® 304 Reducing Tee, 22x18

T28150R-30428x15AISI 304
EN 1.4301
L (mm)
88±2
L1 (mm)
22±1
Weight (g)
117.6
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
100
Carton size (cm)
20*32*25
Carton weight (kg)
11.76
Configuration details

PiPress® 304 Reducing Tee, 28x15

T28180R-30428x18AISI 304
EN 1.4301
L (mm)
88±2
L1 (mm)
22±1
Weight (g)
123
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
70
Carton size (cm)
20*32*25
Carton weight (kg)
8.61
Configuration details

PiPress® 304 Reducing Tee, 28x18

T28220R-30428x22AISI 304
EN 1.4301
L (mm)
88±2
L1 (mm)
22±1
Weight (g)
128
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
70
Carton size (cm)
20*32*25
Carton weight (kg)
8.96
Configuration details

PiPress® 304 Reducing Tee, 28x22

T35150R-30435x15AISI 304
EN 1.4301
L (mm)
101±2
L1 (mm)
29±1
Weight (g)
160.9
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
60
Carton size (cm)
20*32*25
Carton weight (kg)
9.65
Configuration details

PiPress® 304 Reducing Tee, 35x15

T35180R-30435x18AISI 304
EN 1.4301
L (mm)
101±2
L1 (mm)
29±1
Weight (g)
167.7
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
40
Carton size (cm)
20*32*25
Carton weight (kg)
6.71
Configuration details

PiPress® 304 Reducing Tee, 35x18

T35220R-30435x22AISI 304
EN 1.4301
L (mm)
101±2
L1 (mm)
29±1
Weight (g)
167.4
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
40
Carton size (cm)
20*32*25
Carton weight (kg)
6.7
Configuration details

PiPress® 304 Reducing Tee, 35x22

T35280R-30435x28AISI 304
EN 1.4301
L (mm)
101±2
L1 (mm)
29±1
Weight (g)
176.3
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
10
Carton pack (pcs)
40
Carton size (cm)
20*32*25
Carton weight (kg)
7.05
Configuration details

PiPress® 304 Reducing Tee, 35x28

T42150R-30442x15AISI 304
EN 1.4301
L (mm)
120±2
L1 (mm)
33±1
Weight (g)
226.5
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
5
Carton pack (pcs)
40
Carton size (cm)
40*33*33
Carton weight (kg)
9.06
Configuration details

PiPress® 304 Reducing Tee, 42x15

T42180R-30442x18AISI 304
EN 1.4301
L (mm)
120±2
L1 (mm)
33±1
Weight (g)
230.6
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
5
Carton pack (pcs)
40
Carton size (cm)
40*33*33
Carton weight (kg)
9.22
Configuration details

PiPress® 304 Reducing Tee, 42x18

T42220R-30442x22AISI 304
EN 1.4301
L (mm)
120±2
L1 (mm)
33±1
Weight (g)
237.8
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
5
Carton pack (pcs)
80
Carton size (cm)
40*33*33
Carton weight (kg)
19.02
Configuration details

PiPress® 304 Reducing Tee, 42x22

T42280R-30442x28AISI 304
EN 1.4301
L (mm)
120±2
L1 (mm)
33±1
Weight (g)
241
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
5
Carton pack (pcs)
70
Carton size (cm)
40*33*33
Carton weight (kg)
16.87
Configuration details

PiPress® 304 Reducing Tee, 42x28

T42350R-30442x35AISI 304
EN 1.4301
L (mm)
120±2
L1 (mm)
33±1
Weight (g)
254
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
5
Carton pack (pcs)
60
Carton size (cm)
40*33*33
Carton weight (kg)
15.24
Configuration details

PiPress® 304 Reducing Tee, 42x35

T54150R-30454x15AISI 304
EN 1.4301
L (mm)
144±2
L1 (mm)
39±1
Weight (g)
328.8
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
5
Carton pack (pcs)
40
Carton size (cm)
40*33*33
Carton weight (kg)
13.15
Configuration details

PiPress® 304 Reducing Tee, 54x15

T54180R-30454x18AISI 304
EN 1.4301
L (mm)
144±2
L1 (mm)
39±1
Weight (g)
330.2
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
5
Carton pack (pcs)
40
Carton size (cm)
40*33*33
Carton weight (kg)
13.21
Configuration details

PiPress® 304 Reducing Tee, 54x18

T54220R-30454x22AISI 304
EN 1.4301
L (mm)
144±2
L1 (mm)
39±1
Weight (g)
338.9
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
5
Carton pack (pcs)
40
Carton size (cm)
40*33*33
Carton weight (kg)
13.56
Configuration details

PiPress® 304 Reducing Tee, 54x22

T54280R-30454x28AISI 304
EN 1.4301
L (mm)
144±2
L1 (mm)
39±1
Weight (g)
346.6
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
5
Carton pack (pcs)
40
Carton size (cm)
40*33*33
Carton weight (kg)
13.86
Configuration details

PiPress® 304 Reducing Tee, 54x28

T54350R-30454x35AISI 304
EN 1.4301
L (mm)
144±2
L1 (mm)
39±1
Weight (g)
357.4
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
5
Carton pack (pcs)
30
Carton size (cm)
40*33*33
Carton weight (kg)
10.72
Configuration details

PiPress® 304 Reducing Tee, 54x35

T54420R-30454x42AISI 304
EN 1.4301
L (mm)
144±2
L1 (mm)
39±1
Weight (g)
377.3
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
5
Carton pack (pcs)
30
Carton size (cm)
40*33*33
Carton weight (kg)
11.32
Configuration details

PiPress® 304 Reducing Tee, 54x42

T76220R-30476.1x22AISI 304
EN 1.4301
L (mm)
232±2
L1 (mm)
60±2
Weight (g)
975
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
20
Carton size (cm)
40*33*33
Carton weight (kg)
19.5
Configuration details

PiPress® 304 Reducing Tee, 76.1x22

T76280R-30476.1x28AISI 304
EN 1.4301
L (mm)
232±2
L1 (mm)
60±2
Weight (g)
985
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
20
Carton size (cm)
40*33*33
Carton weight (kg)
19.7
Configuration details

PiPress® 304 Reducing Tee, 76.1x28

T76350R-30476.1x35AISI 304
EN 1.4301
L (mm)
232±2
L1 (mm)
60±2
Weight (g)
995.3
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
18
Carton size (cm)
40*33*33
Carton weight (kg)
17.92
Configuration details

PiPress® 304 Reducing Tee, 76.1x35

T76420R-30476.1x42AISI 304
EN 1.4301
L (mm)
232±2
L1 (mm)
60±2
Weight (g)
1030
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
18
Carton size (cm)
40*33*33
Carton weight (kg)
18.54
Configuration details

PiPress® 304 Reducing Tee, 76.1x42

T76540R-30476.1x54AISI 304
EN 1.4301
L (mm)
232±2
L1 (mm)
60±2
Weight (g)
1075
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
16
Carton size (cm)
40*33*33
Carton weight (kg)
17.2
Configuration details

PiPress® 304 Reducing Tee, 76.1x54

T89220R-30488.9x22AISI 304
EN 1.4301
L (mm)
262±3
L1 (mm)
68±2
Weight (g)
1245
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
15
Carton size (cm)
40*33*33
Carton weight (kg)
18.68
Configuration details

PiPress® 304 Reducing Tee, 88.9x22

T89280R-30488.9x28AISI 304
EN 1.4301
L (mm)
262±3
L1 (mm)
68±2
Weight (g)
1285
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
15
Carton size (cm)
40*33*33
Carton weight (kg)
19.28
Configuration details

PiPress® 304 Reducing Tee, 88.9x28

T89350R-30488.9x35AISI 304
EN 1.4301
L (mm)
262±3
L1 (mm)
68±2
Weight (g)
1306.5
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
13
Carton size (cm)
40*33*33
Carton weight (kg)
16.98
Configuration details

PiPress® 304 Reducing Tee, 88.9x35

T89420R-30488.9x42AISI 304
EN 1.4301
L (mm)
262±3
L1 (mm)
68±2
Weight (g)
1335
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
13
Carton size (cm)
40*33*33
Carton weight (kg)
17.36
Configuration details

PiPress® 304 Reducing Tee, 88.9x42

T89540R-30488.9x54AISI 304
EN 1.4301
L (mm)
262±3
L1 (mm)
68±2
Weight (g)
1365
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
13
Carton size (cm)
40*33*33
Carton weight (kg)
17.75
Configuration details

PiPress® 304 Reducing Tee, 88.9x54

T89760R-30488.9x76.1AISI 304
EN 1.4301
L (mm)
262±3
L1 (mm)
68±2
Weight (g)
1485
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
10
Carton size (cm)
40*33*33
Carton weight (kg)
14.85
Configuration details

PiPress® 304 Reducing Tee, 88.9x76.1

T1B220R-304108x22AISI 304
EN 1.4301
L (mm)
312±3
L1 (mm)
82±2
Weight (g)
1798
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
5
Carton size (cm)
40*33*33
Carton weight (kg)
8.99
Configuration details

PiPress® 304 Reducing Tee, 108x22

T1B280R-304108x28AISI 304
EN 1.4301
L (mm)
312±3
L1 (mm)
82±2
Weight (g)
1798
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
5
Carton size (cm)
40*33*33
Carton weight (kg)
8.99
Configuration details

PiPress® 304 Reducing Tee, 108x28

T1B350R-304108x35AISI 304
EN 1.4301
L (mm)
312±3
L1 (mm)
82±2
Weight (g)
1822
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
5
Carton size (cm)
40*33*33
Carton weight (kg)
9.11
Configuration details

PiPress® 304 Reducing Tee, 108x35

T1B420R-304108x42AISI 304
EN 1.4301
L (mm)
312±3
L1 (mm)
82±2
Weight (g)
1820
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
5
Carton size (cm)
40*33*33
Carton weight (kg)
9.1
Configuration details

PiPress® 304 Reducing Tee, 108x42

T1B540R-304108x54AISI 304
EN 1.4301
L (mm)
312±3
L1 (mm)
82±2
Weight (g)
1852
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
5
Carton size (cm)
40*33*33
Carton weight (kg)
9.26
Configuration details

PiPress® 304 Reducing Tee, 108x54

T1B760R-304108x76.1AISI 304
EN 1.4301
L (mm)
312±3
L1 (mm)
82±2
Weight (g)
2014
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
5
Carton size (cm)
40*33*33
Carton weight (kg)
10.07
Configuration details

PiPress® 304 Reducing Tee, 108x76.1

T1B890R-304108x88.9AISI 304
EN 1.4301
L (mm)
312±3
L1 (mm)
82±2
Weight (g)
2126
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
5
Carton size (cm)
40*33*33
Carton weight (kg)
10.63
Configuration details

PiPress® 304 Reducing Tee, 108x88.9

T139350R-304139.7x35AISI 304
EN 1.4301
L (mm)
395±10
L1 (mm)
105±3
Weight (g)
2126
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
2
Carton size (cm)
59.5*40*40
Carton weight (kg)
4.25
Configuration details

PiPress® 304 Reducing Tee, 139.7x35

T139760R-304139.7x76.1AISI 304
EN 1.4301
L (mm)
395±10
L1 (mm)
105±3
Weight (g)
3019
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
2
Carton size (cm)
59.5*40*40
Carton weight (kg)
6.04
Configuration details

PiPress® 304 Reducing Tee, 139.7x76.1

T139890R-304139.7x88.9AISI 304
EN 1.4301
L (mm)
395±10
L1 (mm)
105±3
Weight (g)
3198
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
2
Carton size (cm)
59.5*40*40
Carton weight (kg)
6.4
Configuration details

PiPress® 304 Reducing Tee, 139.7x88.9

T139108R-304139.7x108AISI 304
EN 1.4301
L (mm)
395±10
L1 (mm)
105±3
Weight (g)
3177
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
2
Carton size (cm)
59.5*40*40
Carton weight (kg)
6.35
Configuration details

PiPress® 304 Reducing Tee, 139.7x108

T168350R-304168.3x35AISI 304
EN 1.4301
L (mm)
515±10
L1 (mm)
125±3
Weight (g)
6010
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
2
Carton size (cm)
59.5*40*40
Carton weight (kg)
12.02
Configuration details

PiPress® 304 Reducing Tee, 168.3x35

T168760R-304168.3x76.1AISI 304
EN 1.4301
L (mm)
515±10
L1 (mm)
125±3
Weight (g)
6398
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
2
Carton size (cm)
59.5*40*40
Carton weight (kg)
12.8
Configuration details

PiPress® 304 Reducing Tee, 168.3x76.1

T168890R-304168.3x88.9AISI 304
EN 1.4301
L (mm)
515±10
L1 (mm)
125±3
Weight (g)
6410
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
2
Carton size (cm)
59.5*40*40
Carton weight (kg)
12.82
Configuration details

PiPress® 304 Reducing Tee, 168.3x88.9

T168108R-304168.3x108AISI 304
EN 1.4301
L (mm)
515±10
L1 (mm)
125±3
Weight (g)
6412
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
2
Carton size (cm)
59.5*40*40
Carton weight (kg)
12.82
Configuration details

PiPress® 304 Reducing Tee, 168.3x108

T168139R-304168.3x139.7AISI 304
EN 1.4301
L (mm)
515±10
L1 (mm)
125±3
Weight (g)
6680
Press profile
M
Seal
EPDM with LBP (standard fitting option)
Bag pack (pcs)
1
Carton pack (pcs)
2
Carton size (cm)
59.5*40*40
Carton weight (kg)
13.36
Configuration details

PiPress® 304 Reducing Tee, 168.3x139.7

Size designations are shown as listed in the product catalogue. Confirm outside diameter, wall thickness and mating connection dimensions when ordering.

Selection & documentation

Specify the complete connection.

  • Confirm the exact item code, size and material grade.
  • Provide the fluid, operating pressure and temperature.
  • Match the pipe dimensions, joint geometry and sealing material.
  • Request the drawing, installation instructions and applicable project documents.

Discuss your project

Request a quotation
for this product.

Tell us the selected SKU, quantity and destination. For technical selection, include the fluid, operating pressure and temperature.

M-Profile Reducing Tee
Stainless Steel Press System

info@pipresstech.com

We use these details to respond to your enquiry. Privacy policy.

Related products

PiPress M-Profile Reducing Coupling
Stainless Steel Press System

M-Profile Reducing Coupling

34 size configurations · 68 SKUs
AISI 316L / AISI 304

View sizes & details →
PiPress M-Profile Reducing Street Adapter
Stainless Steel Press System

M-Profile Reducing Street Adapter

34 size configurations · 68 SKUs
AISI 316L / AISI 304

View sizes & details →
PiPress M-Profile Equal Tee
Stainless Steel Press System

M-Profile Equal Tee

12 size configurations · 24 SKUs
AISI 316L / AISI 304

View sizes & details →
