AirLite Self-Locking Quick Plugs
Select the plug or coupler by its type code and end connection. Check the mating connector series and the hose or thread size for your assembly.
- Material options
- See individual configuration
- Connection
- Quick connector / specified end
- Size configurations
- 12 listed combinations
- Selection
- Air connection

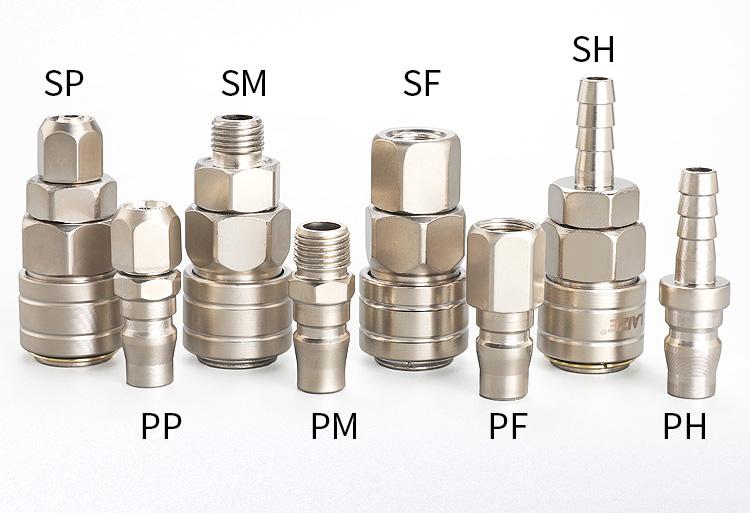

Quick connector series overview. PP/PM/PF/PH are plugs; SP/SM/SF/SH are couplers. Select the exact type by SKU.Product configurations
Find your size and SKU.
Search by item code or size, select the material, and add the configuration to your enquiry.
12 SKUs
| Product SKU | Size designation | Material | Technical details | Enquiry |
|---|---|---|---|---|
| SUS-20PP | for OD8mm/ID5mm Tube | See description | Configuration detailsSelf Locking Quick Plug, 20PP, for OD8mm/ID5mm Tube | |
| SUS-20PM | 1/4" Male | See description | Configuration detailsSelf Locking Quick Plug, 20PM, 1/4" Male | |
| SUS-20PF | 1/4" Female | See description | Configuration detailsSelf Locking Quick Plug, 20PF, 1/4" Female | |
| SUS-20PH | for ID8mm tube | See description | Configuration detailsSelf Locking Quick Plug, 20PH, for ID8mm tube | |
| 30PP | for OD10mm/ID6.5mm Tube | See description | Configuration detailsSelf Locking Quick Plug, 30PP, for OD10mm/ID6.5mm Tube | |
| 30PM | 3/8" Male | See description | Configuration detailsSelf Locking Quick Plug, 30PM, 3/8" Male | |
| 30PF | 3/8" Female | See description | Configuration detailsSelf Locking Quick Plug, 30PF, 3/8" Female | |
| 30PH | for ID10mm tube | See description | Configuration detailsSelf Locking Quick Plug, 30PH, for ID10mm tube | |
| 40PP | for OD12mm/ID8mm Tube | See description | Configuration detailsSelf Locking Quick Plug, 40PP, for OD12mm/ID8mm Tube | |
| 40PM | 1/2" Male | See description | Configuration detailsSelf Locking Quick Plug, 40PM, 1/2" Male | |
| 40PF | 1/2" Female | See description | Configuration detailsSelf Locking Quick Plug, 40PF, 1/2" Female | |
| 40PH | for ID12mm tube | See description | Configuration detailsSelf Locking Quick Plug, 40PH, for ID12mm tube |
No matching SKU. Clear the filters or send your required size below.
Size designations are shown as listed in the product catalogue. Confirm outside diameter, wall thickness and mating connection dimensions when ordering.
Selection & documentation
Specify the complete connection.
- Confirm the exact item code, size and material grade.
- Provide the fluid, operating pressure and temperature.
- Match the pipe dimensions, joint geometry and sealing material.
- Request the drawing, installation instructions and applicable project documents.
Discuss your project
Request a quotation
for this product.
Tell us the selected SKU, quantity and destination. For technical selection, include the fluid, operating pressure and temperature.
